Heavy-Duty Commercial
Tilt & Turn System 85
Engineered for coastal high-rises with deep frame depth, multi-cavity insulation chambers, and maximum wind pressure resistance.
European Engineering Standard

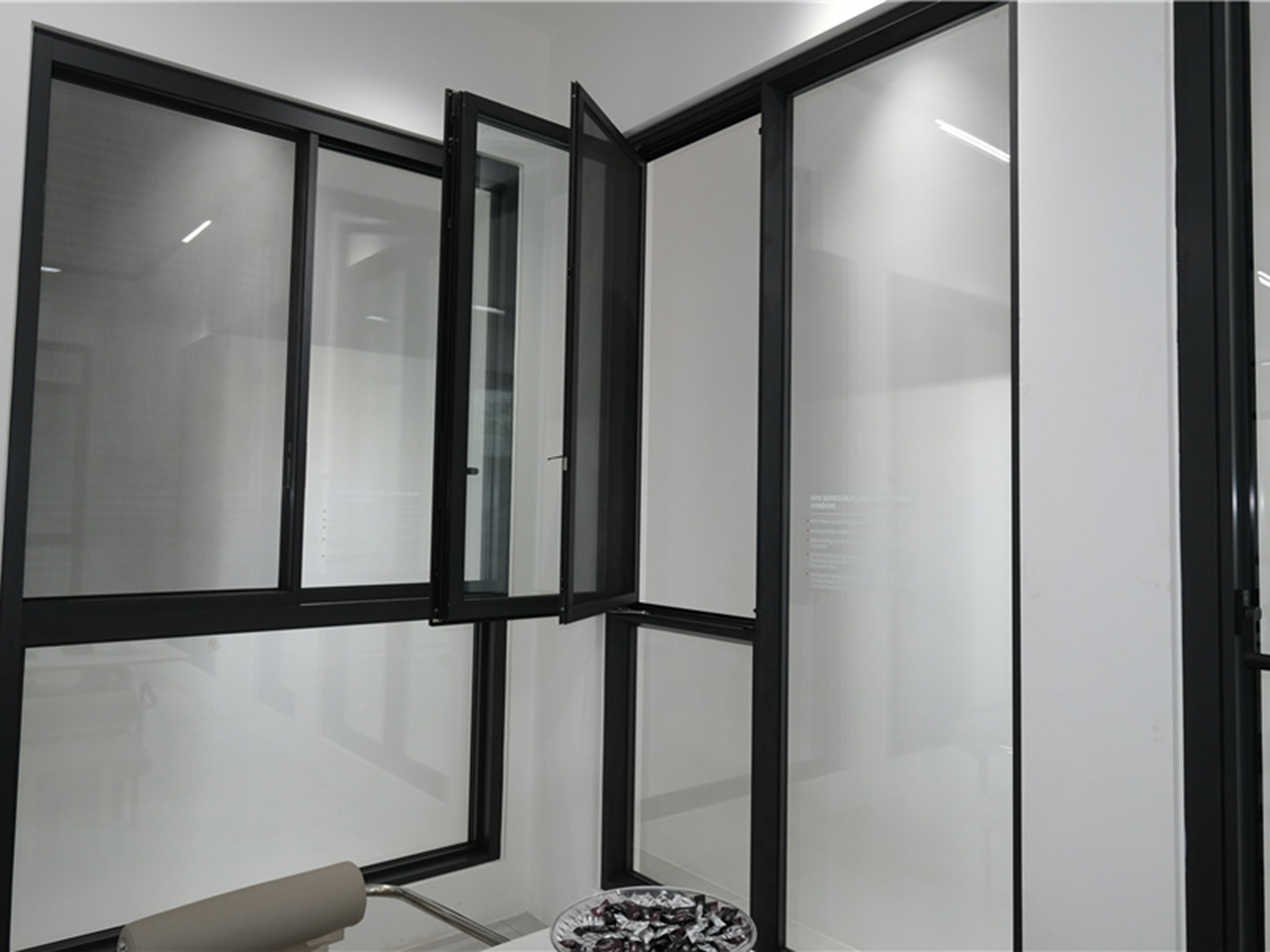

High-Performance Thermal Break Tilt & Turn Window Systems
At Vexis Windows & Doors Co., Ltd., our tilt and turn windows integrate European precision engineering with extra-thick 6063-T5 aluminum extrusions and high-density PA66 polyamide thermal break strips. Designed specifically for high-rise commercial towers, luxury villas, and energy-conscious residential developments, these windows provide complete weather resistance, structural rigidity, and versatile ventilation.
Unlike conventional outward-swinging sashes, our tilt and turn mechanism operates entirely inward. This eliminates exterior clearance risks on elevated floors, enhances anti-burglary security, and streamlines routine glass cleaning from inside the building.
Dual-mode operation via single ergonomic handle
Multi-point locking drive gear around full sash perimeter
Triple EPDM continuous weatherstripping seals
Acoustic isolation up to Rw 45 dB with double/triple glazing
Product Showcase
Featured Tilt and Turn Window Series
Explore our project-proven window configurations, manufactured to meet strict international performance and architectural standards.
Acoustic Isolation
Tilt & Turn System 75
Equipped with triple tempered Low-E insulated glass units for superior sound attenuation and heat insulation in dense urban environments.
Minimalist Architectural
Ultra-Slim Tilt & Turn
Narrow sightline profile design offering expansive daylight penetration without compromising structural integrity or multi-point locking force.

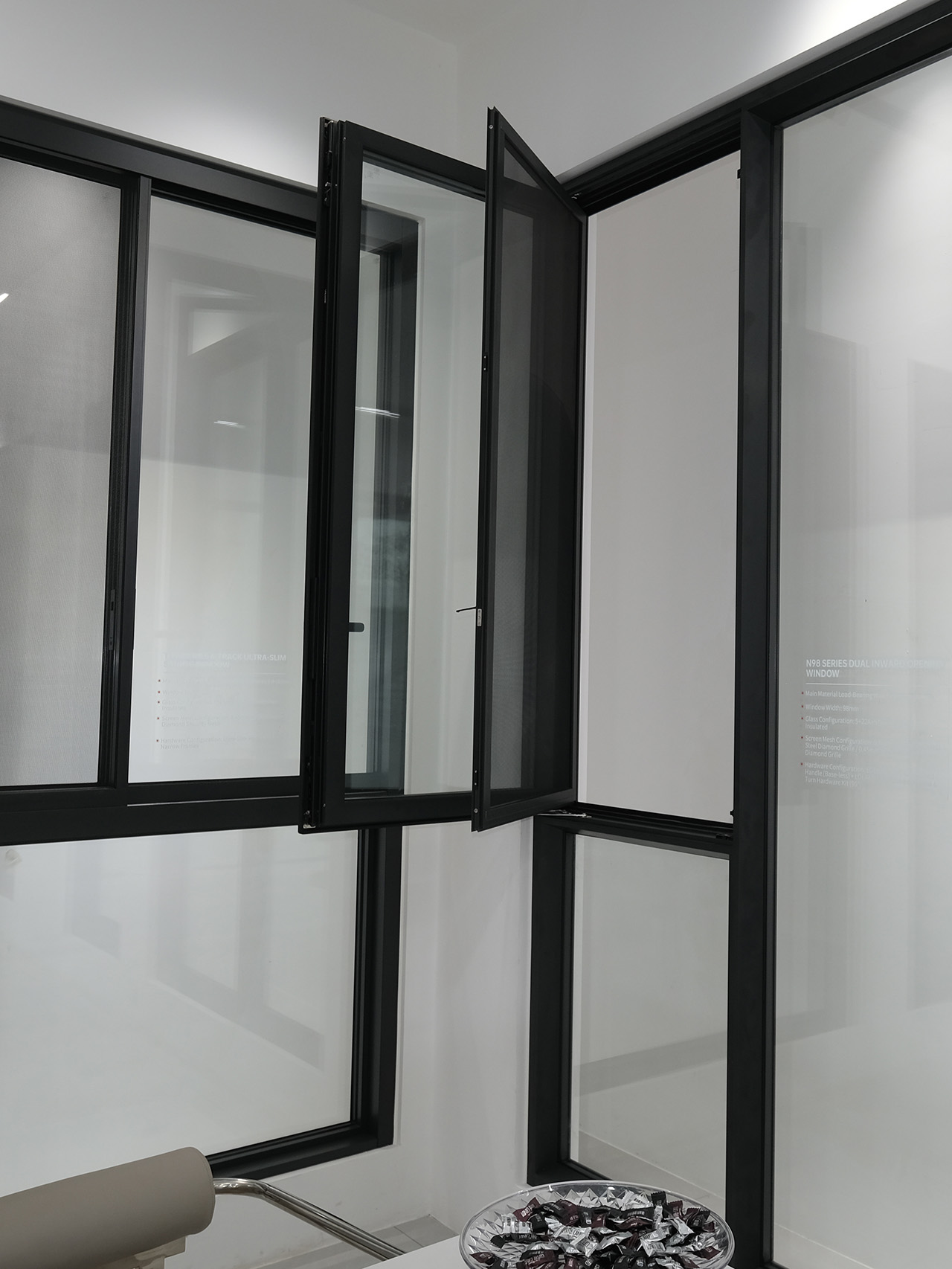

Residential Villa
Standard Tilt & Turn System
Versatile European standard system ideal for high-end residential estates, featuring customizable powder coat and wood-grain finishes.
Technical Benchmarks
Engineering Parameters & Performance Ratings
Vexis tilt and turn window systems undergo rigorous laboratory testing to fulfill strict global building requirements.
| Technical Specification | Standard Performance Value | Testing Standard Compliance |
|---|---|---|
| Frame Profile Alloy | High-precision 6063-T5 aluminum alloy (1.6mm - 2.2mm wall thickness) | GB/T 5237 / ASTM B221 |
| Thermal Insulation Strip | PA66-GF25 glass fiber reinforced polyamide break (24mm - 34mm) | EN 14024 / ISO 9001 |
| Thermal Transmittance (U-Value) | 1.3 W/m²·K – 1.8 W/m²·K (depending on glazing configuration) | NFRC / EN ISO 10077 |
| Acoustic Performance (STC/Rw) | Sound reduction up to 42 dB – 45 dB | ISO 10140 / ASTM E90 |
| Air Infiltration Tightness | Class 4 rating (≤ 0.5 m³/m·h) | EN 12207 / ASTM E283 |
| Water Penetration Resistance | Class 9A (≥ 900 Pa pressure protection) | EN 12208 / ASTM E331 |
| Hardware & Lock Mechanism | Heavy-duty German hardware (SIEGENIA / ROTO / HOPPE options) | EN 13126 / Anti-Burglary RC2 Grade |
Manufacturing Expertise
Why Global Importers & Contractors Choose Vexis
With over 20 years of dedicated export experience, Vexis Windows & Doors Co., Ltd. operates a modern 30,000 m² production hub in Foshan, China. We specialize in factory-direct OEM/ODM manufacturing, delivering fully customized building envelope solutions to clients in over 154 countries.
- 1 Dual Ventilation Modes: Inward top tilt provides secure draft-free ambient air flow; 180° turn mode allows maximum purge ventilation.
- 2 High-Rise Safety Assurance: Entirely inward sash motion prevents accidental panel falling and simplifies exterior glass maintenance from within the room.
- 3 Turnkey OEM/ODM Capability: Complete custom shop drawing review, structural calculation support, and custom surface color matching (RAL & anodized).
Purchasing Guidance
Frequently Asked Questions
Key technical and procurement details for international distributors, architects, and real estate developers.
What are the primary performance advantages of tilt and turn windows?
Tilt and turn windows offer dual-mode opening: tilting inward from the top for secure, draft-free ventilation during rainy or overnight conditions, and fully turning inward 180 degrees for maximum airflow and easy glass cleaning inside high-rise buildings.
Are Vexis tilt and turn windows compliant with international building codes?
Yes. Our systems are engineered using high-grade 6063-T5 aluminum, PA66 thermal insulation strips, and tempered safety glass to meet strict European, North American, and Australian structural, air-tightness, and water-resistance standards.
Can frame colors, glass types, and hardware brands be customized?
Yes, Vexis Windows & Doors Co., Ltd. offers 100% custom fabrication. Options include powder coating, anodized or wood-grain finishes, double/triple tempered Low-E argon glass, and premium German hardware options such as SIEGENIA, ROTO, or HOPPE.
What is the typical shipping lead time for wholesale project orders?
Standard manufacturing lead time is 15 to 25 business days following final shop drawing approval and deposit confirmation. Products are packaged with protective film, corner protectors, and sealed wooden crates for sea freight shipping.
Request a Customized Project Quote & Technical Catalog
Contact our engineering support team today to receive detailed technical drawings, hardware specifications, sample kits, and factory-direct pricing for your project.
