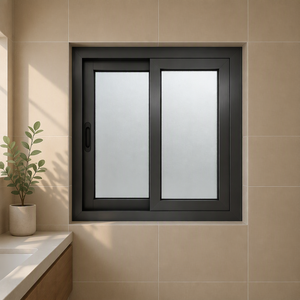

Profile Aluminum Doors And Windows Factories In Foshan China
Get a Quote
Modern Interior Concealed Pocket Slide Doors Large Double Tempered Aluminum
Get a Quote
Aluminum Sliding Patio Doors 2/3 Rails Insulated Tempered Glass
Get a Quote
OEM Aluminum Interior Door Eco-Friendly Rust-Proof Alloy Frame
Get a Quote
Double Hung Windows Modern Design High Quality Aluminium Sash
Get a Quote

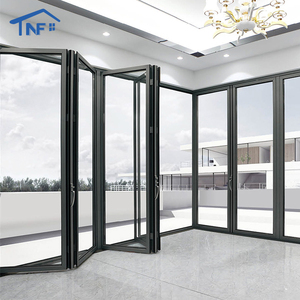

US NFRC Certification Customized Exterior Folding Glass Doors
Get a Quote

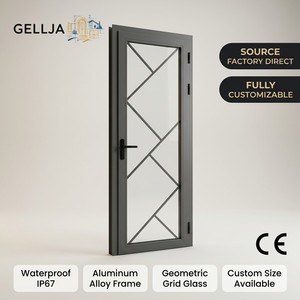

Waterproof Thermal Break Aluminum Interior Door Tinted Glass
Get a Quote
Luxury Energy Efficient Tempered Glass Aluminum Clad Patio Doors
Get a QuoteEngineering Next-Generation Fixed Picture Glazing for the Arabian Gulf Climate
Architectural developments across Dubai, Abu Dhabi, Sharjah, and the northern Emirates demand window and door systems capable of enduring relentless thermal stress, high solar irradiance, sand abrasion, and severe wind pressure differentials. Fixed glass windows (also designated as architectural picture windows or non-operable vision panels) represent the cornerstone of contemporary Middle Eastern facades—delivering maximal natural daylighting while maintaining an impenetrable barrier against desert heat and particulate ingress.
1. Core Material Engineering & Thermal Break Technology for UAE Projects
The ambient climatic conditions in the United Arab Emirates present extreme challenges for structural glazing. Peak summer ambient temperatures frequently exceed 50°C (122°F), with direct exterior aluminum surface temperatures soaring past 75°C. Without advanced thermal separation, standard aluminum frames act as thermal conduits, transferring massive heat loads into building interiors, destabilizing HVAC systems, and dramatically elevating operational energy consumption.
Structural Alloy Grade 6063-T6
We utilize high-precision extruded architectural aluminum alloy 6063-T6 or 6060-T66. Featuring a minimum wall thickness of 2.0mm to 3.0mm for heavy-duty fixed frames, our extrusions maintain rigorous tensile yield strength (≥ 210 MPa) to resist high-altitude wind displacement and micro-seismic stresses.
PA66-GF25 Polyamide Thermal Strips
Our fixed windows integrate multi-cavity Technoform or custom PA66-GF25 (25% fiberglass reinforced) thermal break strips up to 34mm in depth. This multi-chambered insulation barrier prevents thermal bridging and achieves U-frame values ($U_f$) down to 1.3 W/m²K.
Qualicoat Class 3 Coating
Coastal Gulf salinity and intense solar UV rapidly degrade standard paint. Our custom OEM windows undergo AkzoNobel or PPG Interpon PVDF fluorocarbon (3-coat) or Qualicoat Class 2/3 powder coating, guaranteeing color retention and anti-chalking for 25+ years.
OEM Specification Framework: Fixed Glass Window Systems
The table below illustrates our baseline and specialized custom manufacturing configurations tailored specifically for commercial developers, MEP consultants, and luxury villa contractors operating in the UAE market.
| Performance Parameter | Standard Commercial Specification | UAE Tropical / Extreme Climate Custom Spec (Vexis OEM) | Compliance Test Standard |
|---|---|---|---|
| Frame Profile Depth | 50mm – 70mm System Depth | 85mm – 120mm Heavy-Duty Architectural System | EN 12020 / GB/T 5237 |
| Thermal Transmittance ($U_g$) | 2.4 – 2.8 W/m²K | ≤ 0.9 – 1.2 W/m²K (Double Silver Low-E + Argon) | ISO 10077-2 / NFRC 100 |
| Solar Heat Gain (SHGC) | 0.45 – 0.60 | ≤ 0.18 – 0.23 (Spectrally Selective Solar Control) | ASHRAE 90.1 / Estidama |
| Acoustic Rating (Rw / STC) | 30 dB – 34 dB | 40 dB – 48 dB (Laminated Acoustic PVB/SGP) | ISO 140-3 / ASTM E90 |
| Wind Pressure Resistance | 2.0 kPa (P3) | Up to 4.5 – 6.0 kPa (Heavy High-Rise Spec) | ASTM E330 / EN 12210 |
| Air Ingress Sealing | Class 3 (EN 12207) | Class 4 (Triple EPDM Continuous Gaskets) | EN 12207 / ASTM E283 |
| Water Tightness | 450 Pa | ≥ 900 Pa – 1200 Pa Static & Dynamic Pressure | EN 12208 / ASTM E331 |
Architectural Integration Across UAE Real Estate Sectors
Custom OEM fixed aluminum windows are key design components across diverse Middle Eastern building topologies. Here is how our factory-direct solutions resolve project-specific engineering criteria.
Luxury Coastal Villas (Palm Jumeirah & Saadiyat)
Ultra-large panoramic fixed glass panels (spanning up to 3.5m x 6.0m per unit) provide unobstructed sea views. Engineered with SentryGlas® (SGP) laminated interlayers to withstand severe saline humidity, extreme thermal cycles, and high coastal winds without structural delamination.
Commercial High-Rise Towers (DIFC & Business Bay)
Integrated curtain wall spandrels and structural fixed window vision units compliant with Dubai Municipality wind load requirements. Heavy-duty aluminum structural mullions accommodate inter-story differential movement and acoustic dampening for urban environments.
Desert Eco-Resorts & Private Estates (Al Ain & RAK)
Projects located in inland desert locations suffer from extreme diurnal temperature swings (shifting 25°C between night and day). Double thermal break designs prevent micro-gap expansion, keeping airborne dust, micro-sand, and heat entirely sealed out.
2. Regulatory Compliance: Estidama, Al Sa'fat & UAE Civil Defense
Procuring exterior fenestration in the UAE requires absolute alignment with stringent municipal codes and green building regulations:
- Abu Dhabi Pearl Building Rating System (Estidama): Requires strict window-to-wall ratios (WWR) combined with ultra-low SHGC values (≤ 0.22) to minimize total cooling load (KWh/m²/year).
- Dubai Green Building Regulations (Al Sa'fat): Mandates verified thermal performance certification for all architectural glazing, requiring double-glazed units (DGU) with argon gas fills and warm-edge spacers.
- UAE Fire and Life Safety Code of Practice: Fixed vision panels situated near perimeter boundaries or mechanical shafts must feature certified fire-rated glass configurations (E/EW/EI classifications) combined with non-combustible aluminum alloys.
Foshan Manufacturing Precision Meets Global Export Efficiency
As a direct manufacturer operating a 30,000m² industrial production complex in Foshan, China—the epicenter of global aluminum extrusions—Vexis Windows delivers uncompromised product execution directly to project sites across Abu Dhabi, Dubai, Sharjah, and Ras Al Khaimah.
Full OEM / ODM Customization Capabilities
Every project drawing is analyzed by our senior fenestration engineers. We offer complete custom profile extrusion modeling, structural calculations, glass stack customization (Low-E coatings, tinted reflective glass, ceramic frit patterns), and hardware branding matching your architectural submittal documents.
Rigorous Factory Quality Assurance (QA/QC)
Before ocean freight packaging, every fixed glass frame is subjected to strict dimensional checking, corner weld/cleat shear testing, hydrostatic water spray simulation, and glass seal integrity inspection. Certified test reports are provided for consultant approval prior to dispatch.
Seaworthy Containerized Export Packaging
Fixed windows—especially large architectural glass units—are highly vulnerable to transit shock. We utilize customized heavy steel A-frames, fully enclosed wooden crates with moisture-absorbent desiccants, corner edge protectors, and shrink-wrapped protective film to ensure zero-breakage arrival at Jebel Ali Port or Mina Khalifa.
Competitive Factory-Direct Wholesale Economics
Eliminate intermediary trading margins. Sourcing directly from our Foshan manufacturing base delivers premium thermal break fixed glass systems at costs 30% to 45% below European brands, while exceeding regional technical performance standards.
Frequently Asked Questions by UAE Contractors & Developers
Clear, technical answers to common questions regarding customs clearance, shipping, engineering submittals, and product customization.
What glass configurations are recommended for fixed windows in the United Arab Emirates? +
How do you handle shipping logistics to UAE ports such as Jebel Ali or Mina Zayed? +
Can your factory provide technical shop drawings and structural calculation reports for consultant approval? +
How do fixed aluminum windows prevent airborne sand and fine dust infiltration during desert sandstorms (Shamal winds)? +
What surface finish options are available to withstand the coastal marine atmosphere of the Persian Gulf? +
1. PVDF (Fluorocarbon Resin Coating): 3-coat system conforming to AAMA 2605 specifications, providing extreme resistance to chemical corrosion, salt spray, and intense UV degradation.
2. Qualicoat Class 2 / Class 3 Super-Durable Powder Coatings: Formulated by AkzoNobel or Jotun for high heat retention and gloss stability.
3. Architectural Anodizing (20µm – 25µm): Providing metallic aesthetic appeal with maximum surface hardness and zero peeling risk.
What is the typical manufacturing lead time for custom OEM project orders? +
Do your fixed window systems support integrated motorization or smart solar shading glass? +
Accelerate Your Project Specification With Factory-Direct Engineering
Contact our export technical team today to submit your architectural drawings, receive preliminary structural sizing recommendations, or obtain a comprehensive factory-direct pricing proposal for your United Arab Emirates development.
