FEATURED FACTORY CATALOG
High-Performance Aluminium Clad Window & Door Systems
Direct factory supply engineered for residential villas, Passive House standards, high-rise luxury developments, and extreme environmental zones worldwide.
DEMEA Passive House Standard Energy Efficient Triple Glaze Windows for Residential Exterior Aluminum Clad Wood Casement Window
CHAMBROAD Modern Aluminum Clad Wood Windows Casement Triple Glazed Low-E Glass German Hardware for Luxury Villa

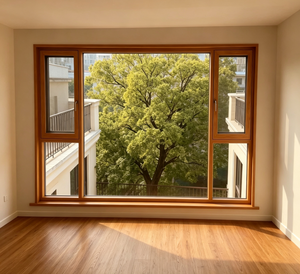

Hot Sale China Manufacturer Modern Aluminum Clad Wood Tilt and Turn Swing Open Windows for Green Buildings

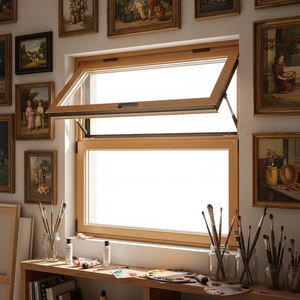

Aluminum Wood Window Manufacturers Aluminum-clad Wood Windows Double Glazing Folding Casement Windows Strong Stainless Steel

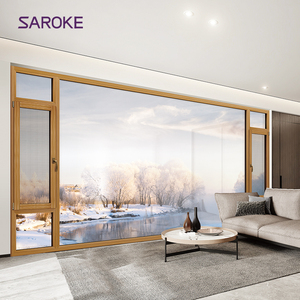

Guangdong Large Tempered Glass Tilt and Turn Aluminum Clad Wood Finish Casement Windows for House

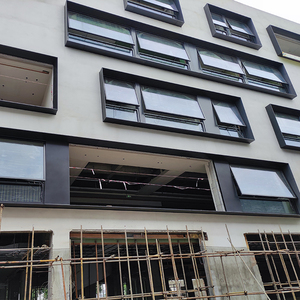

Customized Design of Modern Aluminum Veneer Windows, Sturdy and Durable, Fire-Resistant and Moisture-Proof
Customized Double Glazing Aluminum-Clad Solid Wood Casement Window Modern Tilt Turn Swing Open Style with Triple Glass Grills
ENGINEERING DEEP DIVE
The Structural & Thermodynamic Science of Aluminium Clad Timber Windows
Why premier developers and commercial architects specify aluminum-clad solid wood systems over standard vinyl or non-break aluminum fenestration.
In modern architectural design, the window frame is no longer considered merely a transparent barrier; it is a high-performance thermodynamic envelope component responsible for structural integrity, energy mitigation, and sound isolation. Aluminium Clad Wood Windows (Alu-Clad) represent the pinnacle of fenestration engineering, blending the timeless aesthetic warmth and superior interior thermal insulation of solid timber with the weather-hardened, low-maintenance exterior protection of high-tensile extruded aluminum profiles.
Exterior Cladding Protection
Precision-extruded 6063-T6 aluminum exterior shell treated with AkzoNobel fluorocarbon (PVDF) powder coating, delivering anti-UV degradation, resistance to salt-spray corrosion, and zero paint maintenance requirements for 30+ years.
Core Thermal Break Engineering
Incorporates high-density Polyamide PA66GF25 nylon thermal barrier strips that decouple interior timber from exterior aluminum cladding, eliminating thermal bridging and condensation risks in arctic climates.
Timber Moisture Balance
Constructed from multi-layer finger-jointed laminated Larch, Oak, or Pine dried to a strict 8%-12% equilibrium moisture content (EMC), preventing frame warping, twisting, or seasonal swell under fluctuating relative humidity.
Information Gain Insight for Project Engineers: Standard aluminum profiles possess a high thermal conductivity ($k \approx 160-200\ \text{W/m}\cdot\text{K}$), causing significant heating and cooling loss. By introducing a mechanical clip-on system between the exterior aluminum cladding and interior solid wood (with timber $k \approx 0.13\ \text{W/m}\cdot\text{K}$), the composite profile achieves exceptional overall U-factors as low as 0.79 W/m²K when combined with triple-pane Low-E argon insulated glass units (IGUs).
B2B BENCHMARK MATRIX
Comprehensive Fenestration Material Performance Analysis
A clear side-by-side engineering breakdown evaluating structural integrity, lifespan, thermal insulation, and project return on investment (ROI).
| System Architecture | Thermal U-Factor (W/m²K) | Acoustic Rating (STC/Rw) | Structural Lifespan | Exterior Weatherization | B2B Sourcing Value |
|---|---|---|---|---|---|
| Aluminum Clad Solid Wood (Vexis Standard) | 0.75 - 1.10 (Passive House) | 42 dB - 48 dB | 50+ Years | PVDF Fluorocarbon (AAMA 2605 Certified) | Highest ROI / Premium Luxury |
| Standard Thermal Break Aluminum | 1.40 - 2.00 | 35 dB - 40 dB | 30 - 40 Years | Powder Coating / Anodized | High Durability / Commercial Focus |
| Solid Wood (Unclad Exterior) | 1.10 - 1.50 | 38 dB - 42 dB | 15 - 25 Years (Requires repaint) | Vulnerable to UV & Moisture Decay | High Maintenance / Historic Retrofit |
| Standard uPVC / Vinyl Windows | 1.60 - 2.20 | 28 dB - 34 dB | 10 - 15 Years | Prone to UV yellowing & brittle expansion | Low Initial Cost / Limited Lifespan |
PROCUREMENT TRENDS 2026–2030
Future Procurement Vectors in Global Window & Door Sourcing
How net-zero building regulations, embodied carbon targets, and advanced hardware automation are reshaping buyer demands across North America, Europe, Australia, and the Middle East.
1. Passive House & Net-Zero Compliance
Global building codes are mandating extreme energy efficiency. Fenestration specifications now demand warm-edge Technoform spacers, triple Low-E silver coating stacks, and filled Argon/Krypton chambers to achieve total U-values under 0.8 W/m²K, reducing HVAC operational carbon footprints by up to 45%.
2. Multi-Point German Hardware Integration
Modern B2B buyers are moving away from basic latch mechanisms toward multi-point concealed locking gear systems (such as SIEGENIA, ROTO FRANK, or HOPPE). These systems offer RC2/RC3 burglar resistance, high structural wind-load deflection capabilities, and effortless tilt-turn single-handle operation.
3. Extreme Weatherization & Coastal Durability
With violent climatic events increasing in frequency, window systems supplied to coastal regions like Florida, Australia, and South-East Asia require NFRC certification, AAMA 2605 testing compliance, hurricane impact-resistant laminated glass units, and continuous triple EPDM sealing gaskets.
Enterprise Advantage: Why Direct Sourcing from Foshan Manufacturing Hub Delivers Maximum ROI
Located in the heart of China’s premier building material capital, Vexis Windows & Doors Co., Ltd. operates a 30,000 m² state-of-the-art production base equipped with automated CNC aluminum cutting centers, precision timber milling machine tools, and dynamic glass insulating production lines. By controlling the entire supply chain—from raw timber drying to automated powder coating and custom assembly—we remove intermediary markups and ensure structural quality across every unit.
- Full OEM/ODM Architectural Tailoring: Custom opening styles including inward tilt-and-turn, heavy-duty lift-and-slide, parallel push-out casement, and motorized skylights built to your precise shop drawings.
- Strict Timber Seasoning Standards: All solid wood components undergo multi-stage kiln drying and finger-jointing to guarantee zero structural warping under varying ambient humidity.
- Comprehensive Testing & Export Certification: Compliant with NFRC, CE, AS2047, and ISO9001 standards for seamless customs clearance and building permit approval worldwide.
B2B KNOWLEDGE BASE
Frequently Asked Sourcing & Technical Questions
Clear, detailed engineering answers designed to help procurement managers, real estate developers, and general contractors evaluate project specifications.
What are the main advantages of choosing Aluminium Clad Wood Windows over standard Thermal Break Aluminum?
Aluminium Clad Wood Windows offer a dual-material advantage that cannot be matched by single-material windows. The interior solid wood provides natural thermal insulation (significantly lowering U-factors) while adding an elegant, high-end furniture finish inside the room. Meanwhile, the exterior aluminum cladding protects the timber from sun, rain, and snow, eliminating the need for periodic exterior wood repainting. This combination yields superior acoustic performance (higher STC ratings), lower overall thermal transfer, and a significantly elevated property market valuation.
How does your factory ensure the solid wood does not warp, rot, or swell over time?
We employ a rigorous timber treatment process. First, high-grade timber species (such as imported European Larch, American Red Oak, or Teak) undergo computer-controlled kiln drying to achieve a stable equilibrium moisture content of 8%–12%. Second, the timber is cut into multi-layer laminated finger-jointed profiles; combining grains in opposing directions neutralizes natural timber stress and prevents warping. Finally, all wood surfaces receive multi-coat environmentally friendly water-based paints (such as German Remmers or Zobel), which allow the wood to breathe while offering water repellency and anti-fungal protection.
Can Vexis customize window dimensions, frame colors, glass setups, and hardware for custom projects?
Yes, 100% of our production is made-to-order according to your project's architectural drawings. Importers and developers can select:
1. Finishes: 200+ RAL powder coating colors, anodized metallic tones, or AAMA 2605 PVDF coatings for the exterior aluminum, alongside various interior wood stains.
2. Glass Units: Double or triple glazed tempered glass, Low-E solar control glass, laminated hurricane impact glass, soundproof acoustic PVB interlayers, or decorative internal grilles.
3. Hardware: Authentic German SIEGENIA, ROTO, or HOPPE hardware in silver, black, or custom metallic finishes.
1. Finishes: 200+ RAL powder coating colors, anodized metallic tones, or AAMA 2605 PVDF coatings for the exterior aluminum, alongside various interior wood stains.
2. Glass Units: Double or triple glazed tempered glass, Low-E solar control glass, laminated hurricane impact glass, soundproof acoustic PVB interlayers, or decorative internal grilles.
3. Hardware: Authentic German SIEGENIA, ROTO, or HOPPE hardware in silver, black, or custom metallic finishes.
What certificates and test documentation do you supply for project permit submissions?
We provide full technical submittal packages tailored to your country's building code requirements. Our windows and doors have been tested and certified under international standards including NFRC (National Fenestration Rating Council), AAMA, CE standards for the European Union, AS2047 for Australia, and ISO9001 quality management systems. Test reports covering thermal transmittance (U-factor), solar heat gain coefficient (SHGC), air infiltration, water resistance under extreme pressure, and structural wind load capacity are available upon request.
How are orders packed to prevent frame damage and glass breakage during ocean transit?
Export safety is a core priority. Every completed window unit undergoes a strict 5-layer packaging procedure:
1. Protective surface film applied to all metal and timber surfaces.
2. Heavy-duty plastic foam corner protectors on all four corners.
3. Fully enclosed bubble wrap and waterproof plastic film wrapping.
4. Custom-sized, fumigation-free wooden crates or plywood boxes with internal foam padding.
5. Steel banding and palletizing designed for safe forklift loading and container unloading at destination ports.
1. Protective surface film applied to all metal and timber surfaces.
2. Heavy-duty plastic foam corner protectors on all four corners.
3. Fully enclosed bubble wrap and waterproof plastic film wrapping.
4. Custom-sized, fumigation-free wooden crates or plywood boxes with internal foam padding.
5. Steel banding and palletizing designed for safe forklift loading and container unloading at destination ports.
What is the typical manufacturing lead time and minimum order quantity (MOQ)?
Because we operate a 30,000 m² high-capacity production facility, our typical production lead time is 25 to 35 days following final CAD shop drawing approval and sample confirmation. We support both full container load (FCL) project shipments and custom villa orders with flexible MOQs. Contact our technical export team with your schedule and elevation drawings for an expedited estimate.
