Featured Exterior Door & Window Systems
Precision-engineered, factory-direct aluminum solutions compliant with international building codes (NFRC, CE, AS2047).
Architectural Whitepaper: Structural Evolution of Exterior Crittall-Style Doors
Overcoming the historical limitations of hot-rolled steel through advanced thermal break aluminum extrusion engineering.
PA66-GF25 Thermal Insulation
Historical steel Crittall doors suffered from severe thermal bridging, creating condensation and energy loss. Modern aluminum iterations integrate 24mm to 34mm Polyamide (PA66-GF25) reinforced thermal barriers, dropping total frame U-factors down to 1.3 W/m²K while preserving the iconic slim-profile aesthetic.
Structural Glazing & Slim Sightlines
Achieve sightlines as narrow as 18mm to 30mm using 6063-T6 high-tensile extruded aluminum profiles. Internal structural reinforcement ribs allow these exterior Crittall-style French, bi-fold, and sliding doors to withstand extreme wind pressures up to 5000 Pa (ASTM E330 testing standards).
Qualicoat Class 2 Weathering Resistance
Exterior Crittall style installations require superior protection against salt fog, UV exposure, and moisture oxidation. Our manufacturing lines utilize Qualicoat Class 2 fluorocarbon and ultra-durable powder coatings, tested for 3,000+ hours of continuous salt spray endurance (ISO 9227).
Engineering Benchmarks: Steel vs. Standard Aluminum vs. Architectural Thermal Break Crittall
Comprehensive comparative analysis designed for facade engineers, developers, and trade importers.
| Performance Metrics | Legacy Hot-Rolled Steel | Standard Non-Thermal Aluminum | Vexis Architectural Thermal-Break Crittall |
|---|---|---|---|
| Thermal Transmittance (U-Value) | 3.8 - 5.2 W/m²K (Poor) | 4.0 - 5.5 W/m²K (Poor) | 1.2 - 1.6 W/m²K (Passivhaus Capable) |
| Frame Sightline (Mullion Width) | 20mm - 30mm | 50mm - 80mm | 18mm - 32mm (Authentic Industrial Grid) |
| Water Tightness (ASTM E331) | 150 Pa - 300 Pa | 300 Pa | 700 Pa - 900 Pa (Class 9A) |
| Acoustic Insulation (STC / Rw) | 28 dB - 32 dB | 30 dB - 34 dB | 42 dB - 48 dB (Acoustic Laminate IGU) |
| Corrosion Resistance Life | Requires frequent painting | 10 - 15 Years | 25+ Years (Qualicoat Powder Coating) |
| Cost Efficiency & Weight | High Cost / Extremely Heavy | Low Cost / Light | Optimal ROI / Engineered Weight Ratio |
Global Procurement & Architectural Design Trends (2026-2030)
Market intelligence and procurement shifts shaping the demand for exterior metal frame glass systems.
1. Decarbonization Mandates
Global building codes (such as UK Part L, US IECC, and Australian NCC) are penalizing cold-bridge structural elements. Buyers are replacing traditional steel doors with thermal-break aluminum Crittall equivalents to pass strict building envelope energy audits.
2. Concealed Multi-Point Locks
Modern luxury villas demand high-security hardware without sacrificing minimalism. Next-gen exterior Crittall doors feature multi-point gearboxes embedded within 20mm profile cavities, meeting RC2 and RC3 European burglar resistance standards.
3. Double & Triple Glazed IGUs
Transitioning from single glazing to double/triple Low-E units filled with 90% Argon gas. Integrated acoustic laminated glass options effectively isolate exterior urban noise down to 45 decibels.
4. Factory Modularization
To reduce expensive job-site labor in North America, Europe, and Australia, leading Chinese manufacturers supply pre-assembled structural frames with factory-fitted gaskets, reducing on-site installation time by 60%.
Why Source Crittall Doors from Vexis Windows & Doors?
Vexis Windows & Doors Co., Ltd. (located in Lishui Town, Foshan, Guangdong) operates as a top-tier manufacturer integrating product R&D, structural design, precision CNC fabrication, and international export logistics under one centralized management system.
Our engineering division customizes profile wall thickness (up to 3.0mm heavy-duty structural grade), glass composition (tempered, laminated, ceramic-printed glazing bars), and hardware integration (Siegenia, Hoppe, Sobinco) based on your structural architect's specification drawings.
Every batch undergoes strict factory testing: air permeability (ASTM E283), water penetration (ASTM E331), structural loading (ASTM E330), and acoustic attenuation (ISO 10140-2).
Full-Cycle B2B Project Support SOP
-
1
Architectural CAD/BIM Review: 24-hour turnaround for shop drawings based on your schedule of openings.
-
2
Custom Extrusion & Powder Coating: Precision CNC cutting, hydraulic corner crimping, and Qualicoat-certified surface treatment.
-
3
Pre-Shipment Trial Assembly: 100% factory pre-erection check for smooth sash operation, squareness, and seal tightness.
-
4
Reinforced Ocean Packing: Fully enclosed plywood crates with protective foam film, corner protectors, and desiccant packs.
Frequently Asked Questions (FAQ) for Importers & Developers
Expert insights addressing key technical, commercial, and logistical queries regarding exterior aluminum Crittall doors.
Why choose thermal break aluminum Crittall doors over traditional steel doors for exterior applications?
How are the Crittall-style glazing bars (mullions/transoms) fabricated on exterior glass doors?
1. True Divided Lites (TDL): The door leaf is constructed using individual thermal-break aluminum cross-members, separating the glass into distinct double-glazed panes. Recommended for high-load commercial entry doors.
2. Simulated Divided Lites (SDL): A single large double/triple-glazed insulated glass unit is fitted with internal aluminum spacer bars, and precision CNC-machined aluminum grid profiles are structurally bonded to both exterior and interior glass surfaces using 3M VHB structural tape and silicone. SDL delivers superior thermal insulation (U-value ≤ 1.4 W/m²K) and water tightness while perfectly recreating the iconic steel grid look.
Do your aluminum Crittall exterior doors comply with local building regulations in the USA, Canada, UK, and Australia?
• USA & Canada: NFRC thermal performance ratings, Florida Hurricane impact test standards (TAS 201/202/203), and ASTM E330 structural loading certifications.
• United Kingdom & EU: CE Marking, BS EN 12207 air permeability, BS EN 12208 water tightness, and UK Building Regs Part L (U-values below 1.4 W/m²K).
• Australia & New Zealand: AS2047 and AS1288 certified through NATA-accredited testing laboratories, including bushfire resistance options (BAL 29 / BAL 40).
What opening configurations are available for exterior Crittall-style doors?
• French Casement Doors: Single or double active leaves with inswing or outswing operation, sidelights, and top transoms.

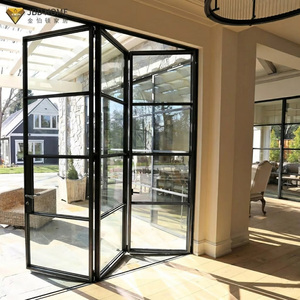

• Bi-Fold Accordion Doors: 2 to 10-panel folding track systems opening up to 12 meters wide, featuring heavy-duty bottom stainless steel rollers.
• Ultra-Slim Sliding & Pocket Doors: Large-panel sliding doors with interlocking mullions down to 18mm width and flush threshold options.
• Pivot Doors: Heavy-duty grand entry doors utilizing hydraulic floor springs and multi-point perimeter compression seals.
What is the Minimum Order Quantity (MOQ) and lead time for custom project manufacturing?
• MOQ: Flexible (Sample orders or single villa packages accepted; full container loads eligible for factory bulk tier pricing).
• Production Lead Time: Standard custom fabrication takes 25 to 35 business days after final approval of CAD shop drawings and color swatches.
• Shipping Logistics: Complete sea freight (FCL/LCL), air cargo, or door-to-door delivery with DDP/DDU terms managed by our export logistics division.
How do you ensure zero damage to glass and frames during ocean transit?
Ready to Elevate Your Project with Premium China Aluminum Crittall Doors?
Send us your door schedules, architectural CAD drawings, or rough opening sizes. Our engineering team will review structural loads, recommend optimal profile systems, and issue a competitive factory-direct quote within 24 hours.
