High-Performance Aluminium Side Window & Door Systems
Engineered for extreme structural load, sound insulation, and thermal efficiency across commercial and luxury residential builds.
Modern Sliding Glass Doors Narrow Frame Design Patio Balcony Sliding Doors Aluminum Interior Sliding Patio Door

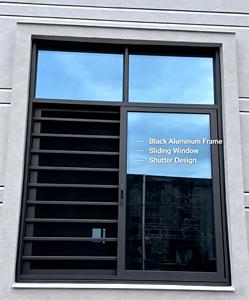

Aluminium Sliding Window 6063-T5 Profile PVDF Coating Low-E Tempered Glass Condensation Resistant

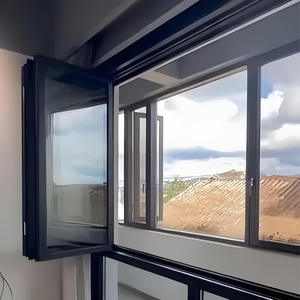

Vertical Aluminum Glass Folding Windows Outdoor House Vertical Folding Glass Windows

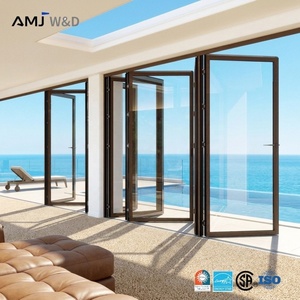

Coastal Windproof Bifold Doors Aluminum Glazing Double Glass Panels Low E With Steel Screen
Lukliving Aluminum Sliding Window Bay Single Pane Horizontal Sliding Window System

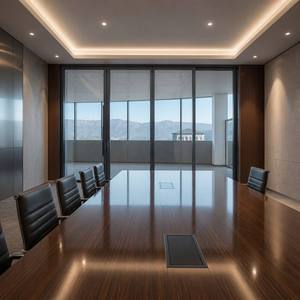

Aluminum Sliding Glass Door Double Glazed Slim Frame Soundproof Waterproof For Patio

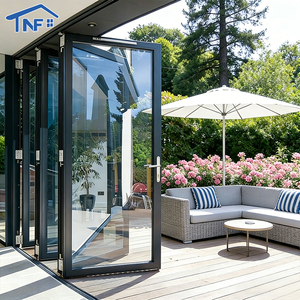

Bi-fold Doors Thermal Break Aluminum Glass Bifold Folding Door Coastal Windproof Accordion Doors

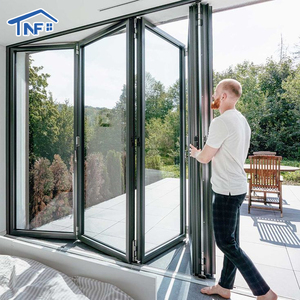

NF Aluminum Doors Aluminium Bifold Patio Folding Glass Doors Outswing Energy Efficient Bifold Door
1. The Global Landscape of Aluminium Side Windows Manufacturing
In modern commercial and high-end residential architecture, aluminium side windows (comprising side-hung casement, horizontal sliding, vertical folding, and tilt-and-turn configurations) represent a critical envelope component. As energy codes become more rigorous—such as Europe’s EPBD directive, North America’s NFRC standards, and Australia’s AS2047 fenestration codes—the selection of a qualified manufacturer requires detailed evaluation far beyond initial unit price.
Leading global fabricators differentiate themselves through vertical integration: in-house alloy extrusion, automated thermal break insertion, multi-layer PVDF coating, precision CNC machining, and rigorous air-water-structural laboratory testing. Below is an authoritative technical benchmark matrix evaluating the top global manufacturers and supply hubs specializing in architectural aluminium side windows.
| Manufacturer / Supply Hub | Primary Profile Alloy | Thermal Barrier Tech | Max Wind Load (Pa) | U-Value Range (W/m²K) | Export Market Specialization |
|---|---|---|---|---|---|
| Vexis Windows (Foshan, China) | 6063-T5 / 6060-T6 | PA66GF25 Polyamide Strip | 5,000 Pa (Typhoon Grade) | 0.8 - 1.4 W/m²K | North America, Australia, EU, SE Asia (154+ Countries) |
| Schüco International (Germany) | EN AW-6060 T66 | Continuous Polyurethane/PA | 4,500 Pa | 0.7 - 1.3 W/m²K | European Union, Global Commercial High-Rise |
| Reynaers Aluminium (Belgium) | 6060-T6 Architectural | Multi-Chamber Polyamide | 4,200 Pa | 0.8 - 1.5 W/m²K | Europe, North America, Middle East |
| YKK AP (Japan / USA) | Anodized Structural Alloy | ThermaCore Composite | 4,000 Pa | 1.1 - 1.6 W/m²K | Japan, North America Commercial |
| Kawneer (Arconic, USA) | 6063-T6 Heavy-Duty | IsoLock® Thermal Break | 4,800 Pa | 1.0 - 1.7 W/m²K | North American Institutional & Curtain Wall |
| Technal (Hydro Group, France) | Recycled Hydro CIRCAL 75R | Polyamide Insulating Bars | 4,000 Pa | 0.9 - 1.5 W/m²K | EU, South America, Middle East |
| Cortizo (Spain) | Extruded 6063 Aluminium | Tubular Polyamide 24-34mm | 3,800 Pa | 0.9 - 1.4 W/m²K | Western Europe, Latin America |
| Aluk Group (Luxembourg/UK) | Architectural Grade 6063 | Polyamide Thermal Struts | 3,600 Pa | 1.1 - 1.6 W/m²K | UK, Middle East, Asia-Pacific |
| Lixil / TOSTEM (Japan) | TexGuard Anodized Profile | Resin-Aluminum Composite | 3,500 Pa | 1.2 - 1.8 W/m²K | Japan, Southeast Asia Residential |
| Oldcastle BuildingEnvelope (USA) | Commercial Structural Aluminum | Pour & Debridge / Polyamide | 4,500 Pa | 1.1 - 1.7 W/m²K | US & Canadian Commercial Towers |
2. Core Technical Criteria for Evaluating Aluminium Side Windows
B2B buyers, real estate developers, and general contractors must look beyond superficial aesthetics. When auditing an aluminium side window manufacturer, the following four engineering pillars determine project compliance and long-term durability:
Thermal Barrier Engineering
Non-thermal break profiles suffer from high thermal conductivity (K-value ~200 W/mK), leading to massive interior heat gain or loss and severe condensation. Tier-1 manufacturers utilize PA66GF25 (Polyamide 66 reinforced with 25% glass fiber) struts, creating an isolated thermal break that reduces overall window U-factors below 1.2 W/m²K when combined with Low-E double or triple insulated glass units (IGUs).
Structural Wind & Water Tightness
Side windows installed on high-rise structures or coastal zones must withstand lateral wind pressures up to 5,000 Pascals (equivalent to Category 5 typhoons). Superior manufacturers employ multi-chamber EPDM (Ethylene Propylene Diene Monomer) gasket seals and concealed multi-stage drainage channels that prevent water ingress under pressure testing (ASTM E331 / EN 12208 Class 9A).
Acoustic Attenuation (STC / Rw)
Urban side fenestrations require significant Sound Transmission Class (STC) ratings to mute ambient traffic and aircraft noise. Utilizing asymmetric laminated glass (e.g., 6mm + 1.52PVB + 4mm) combined with air tight multi-point locking hardware allows advanced side windows to achieve sound reduction levels up to Rw 42 to 45 dB.
Surface Treatment & Corrosion Resistance
For coastal salt-spray environments, standard powder coatings degrade rapidly. Top-tier factories implement PVDF (Fluorocarbon) liquid coatings or specialized Qualicoat Class 2/3 powder systems meeting AAMA 2605 specifications, guaranteeing 20+ years of color retention and zero chalking or peeling.
3. Enterprise Profile & Technical Superiority: Vexis Windows
Headquartered in the global building materials manufacturing capital of Foshan, Guangdong, Vexis Windows & Doors Co., Ltd. has spent over two decades engineering and manufacturing factory-direct architectural window and door systems. Operating out of a state-of-the-art 30,000 m² production hub complemented by a 1,500 m² immersive exhibition hall, Vexis integrates R&D, structural engineering, precision CNC fabrication, and international trade compliance under one roof.
Unlike regional assembly shops, Vexis utilizes high-precision 6063-T5 virgin aluminium billets extruded with structural wall thicknesses ranging from 1.4mm for residential casements to 3.0mm heavy-duty commercial framing. By matching structural profiles with German-engineered hardware (such as Siegenia, Hoppe, and GU) alongside local precision locksets, Vexis window systems meet strict overseas building codes, including Australia’s AS2047/AS1288, North America’s NFRC/CSA, and European CE specifications.
4. Future Sourcing Trends for Aluminium Side Windows (2026-2030)
As the global building sector transitions toward net-zero emissions and smart building automation, several technological trends are fundamentally reshaping how aluminium side windows are designed and specified:
- Ultra-Slim Sightline Engineering: Modern architectural demand favors minimal frame visibility. Advanced manufacturers are delivering side sliding and casement windows with interlock widths as narrow as 20mm, maximizing natural light penetration without compromising structural deflection standards.
- Smart Dynamic Glazing Integration: Electrochromic (EC) and PDLC smart glass are being directly integrated into side window frames, allowing occupants to alter solar heat gain coefficient (SHGC) and privacy at the touch of a button or via automated BMS systems.
- Building-Integrated Photovoltaics (BIPV): Spandrel and side window vision areas are increasingly incorporating semi-transparent solar cells, turning window glass into active energy-generating building surfaces.
- Low-Carbon Recycled Extrusions: Leading B2B buyers now mandate environmental product declarations (EPDs). Sourcing profiles made from post-consumer recycled aluminium (reducing carbon footprints by up to 85% compared to primary aluminium) is becoming a prerequisite in major international tenders.
Frequently Asked Questions for B2B Procurement
What types of side windows and doors does Vexis manufacture?
Can window sizes, profile colors, and glass performance specs be fully customized?
How do Vexis window systems adapt to local building codes and severe weather conditions?
Which international markets does Vexis export to, and what compliance support is offered?
What key information should be provided to receive a fast, accurate technical quote?
Are factory visits and showroom inspections permitted prior to contract signing?
Ready to Upgrade Your Project's Fenestration Specification?
Consult with Vexis senior export engineers today. Receive custom structural shop drawings, thermal calculations, and competitive factory-direct pricing within 24 hours.
Contact Us
