High-Performance Aluminium Window & Door Systems
Precision-engineered fenestration solutions compliant with North American AAMA/NFRC, European CE, and Australian AS2047 standard metrics for international project sourcing.
Aluminum Alloy Frame Pleated Mesh Folding Screen Doors Blinds Components Patio Insect Sliding Fly Screen Door
Heavy-Duty Aluminum French Doors with Double Glazing - for Living Room & Kitchen
EEHE Vertical Aluminum Sliding Window CE Certified Thermal Break Windproof Anti-Fall Single Hung Soundproof
British Modern Minimalist Dark Grey Matte Security Pivot Door Heavy Metal Entry Door Anti-Theft Feature Exterior Villa Kitchen
Customized Aluminum Sliding Windows Energy Efficient NFRC AS2047 Tempered Glass Hurricane Certification Aluminum Sliding Window
AAMA/NFRC Certified Entrance Aluminium Hinged Doors for Double Glazed Doors
USA Certified Energy-Saving Aluminum Casement Door With Blinds Inside Grill Design Double Pane Aluminum Door

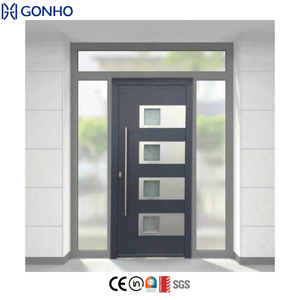

Modern Exterior Front Doors Aluminum Doors Windows Single Double Interior External French Swing Hinged Casement Door Waterproof
Engineering & Structural Architecture of OEM/ODM Aluminium Folding Windows
In contemporary commercial and luxury residential architecture, fenestration is no longer merely a passive thermal barrier; it serves as a dynamic structural interface connecting interior environments with external landscapes. As a primary global OEM/ODM Aluminium Folding Windows Exporter, our manufacturing engineering focuses on solving the dual challenges of maximum clear span opening and extreme weather-shell durability. Bifold and folding window systems demand rigorous cross-sectional structural integrity to prevent sash deflection, air infiltration, and thermal bridging under variable wind pressure conditions.
Engineered aluminum folding windows utilize high-precision 6063-T5 or 6063-T6 architectural grade aluminum extrusions. The key differentiator between low-end commercial assemblies and structural system windows lies in profile wall thickness, multi-cavity thermal break integration, and bottom-load carriage stainless steel roller systems. By incorporating glass-fiber reinforced polyamide (PA66GF25) thermal barrier strips, modern folding windows isolate the outer aluminum frame from the inner profile, lowering overall frame thermal conductivity (U-factor) to values below 1.6 W/m²K when combined with argon-filled, warm-edge low-emissivity double or triple insulated glazing units (IGU).
| Performance Parameter | System Standard Specification | Engineering Testing Method / Norm |
|---|---|---|
| Profile Alloy Grade & Temper | 6063-T5 / T6 High-Precision Architectural Extrusion | GB/T 5237 / ASTM B221 |
| Profile Primary Wall Thickness | 2.0 mm – 3.0 mm Reinforced Load-Bearing Track Profiles | EN 12020-2 / AAMA 101 |
| Thermal Barrier Integration | 24mm – 34mm PA66GF25 Polyamide Structural Insulating Strips | ISO 10077-2 / NFRC 100 |
| Acoustic Insulation Performance | STC 38 dB – 45 dB (Weighted Sound Reduction Rw) | ASTM E413 / ISO 717-1 |
| Structural Wind Load Resistance | Design Pressure (DP) 50 Pa – 70 Pa (Up to 5000 Pa Ultimate) | AS2047 / ASTM E330 |
| Water Infiltration Resistance | 700 Pa Static Water Head Pressure Resistance | AAMA 501.1 / EN 12208 |
| Surface Finishing Options | PVDF Fluorocarbon (20-Year Coastal), Qualicoat Powder Coating | AAMA 2604 / AAMA 2605 |
Mechanical Kinematics & Hardware Engineering
The operational longevity of a heavy-duty folding window is dictating by its hardware kinematic design. Traditional top-hung systems subject headers to immense structural tension, often requiring costly structural steel I-beams. Modern OEM/ODM bifold systems engineered by Vexis utilize bottom-loaded stainless steel quadruplex roller carriages operating within extruded guide tracks. This transfers 90% of panel weight directly to the floor structure, preventing upper track sag and panel misalignment over prolonged duty cycles.
Furthermore, weather-tightness is reinforced through continuous multi-point gear locking mechanisms, shoot-bolt locking rods, and dual-durometer EPDM (Ethylene Propylene Diene Monomer) gasket seals. Unlike standard PVC seals, EPDM gaskets maintain elasticity across extreme thermal ranges (-40°C to +120°C), eliminating air gaps and preventing water entry under severe wind-driven rain scenarios.
Future Sourcing & Procurement Trends in Fenestration (2026–2030)
Analysis of shifting architectural specifications, energy code mandates, and supply chain digital integration driving global export demand.
1. Ultra-Slim Sightlines & Zero-Threshold Seamless Transitions
Architectural preference is rapidly shifting toward minimal visual footprint frames. Future OEM specifications demand vertical interlock profiles with sightlines under 30mm while maintaining structural wind resistance. Simultaneously, flush-mounted ADA-compliant drainage thresholds are replacing high step-over tracks, utilizing concealed sub-floor drainage channels to siphon water during storm events.
2. Deep Thermal Optimization & Passive House Certification
Stricter global energy codes (such as ASHRAE 90.1, Title 24 in California, and Europe's EPBD) are driving demand for triple-glazed bifold assemblies featuring Warm-Edge spacer bars, Aerogel insulation filling in profile cavities, and vacuum insulated glass (VIG). B2B buyers now prioritize exporters capable of providing certified NFRC and PHI simulation data.
3. Decarbonized Supply Chains & Recycled Aluminum Profiles
Institutional real estate developers are assessing Scope 3 embedded carbon in building materials. Modern OEM suppliers are adopting low-carbon primary aluminum smelted via hydroelectric power or incorporating up to 75% post-consumer recycled aluminum scrap without sacrificing tensile strength or surface anodizing aesthetics.
4. Smart Automation & Concealed Motorization Integration
High-end residential and commercial patio spaces increasingly specify automated folding systems. Integrated 24V brushless DC actuators, hidden within upper headers and connected to Building Management Systems (BMS) or smart home hubs, allow effortless push-button operation of multi-panel sash configurations exceeding 500kg total weight.
Vexis OEM & ODM Custom Manufacturing Workflow
How we transform architectural blueprints into factory-certified, site-ready aluminum window and door shipments.
Consultation
Analysis of structural opening drawings, elevation profiles, wind loads, and thermal performance targets.
3D Shop Drawings
CAD/BIM engineering detailing profile extrusions, glass stops, track drainage, and perimeter sealing details.
Tooling & Extrusion
Custom die creation, precision extrusion cutting, CNC machining for hardware mortising, and surface treatment.
Assembly & Testing
Pre-assembly calibration, corner crimping, gasket fitting, cycle testing, and water spray chamber verification.
Export Packaging
Protective film application, corner guards, fully enclosed fumigated plywood crate packing for sea freight.
Enterprise Infrastructure & Global Export Capabilities
Direct factory-direct manufacturing leverage backed by decades of international fenestration project experience.
30,000 m² Advanced Production Base
Located in Lishui Town, Foshan, Guangdong, China—the global capital of aluminum profile manufacturing—our facility is equipped with automated double-head cutting saws, multi-axis CNC machining centers, and automated thermal strip insertion lines.
International Certification Compliance
Vexis systems are engineered to pass stringent target market codes. We provide test documentation for North American NFRC thermal standards, AAMA structural benchmarks, Australian AS2047 windows compliance, and European CE marking.
1,500 m² Immersive Exhibition Hall
We welcome international commercial developers, fenestration distributors, and main contractors to visit our Foshan showroom. Experience live dynamic operational testing of slim-line bifold doors, heavy-duty sliding patio doors, and motorized sky-glazing.
Frequently Asked Questions for Project Buyers & Importers
Detailed answers addressing engineering parameters, OEM customization options, packaging protocols, and trade compliance.
What structural aluminum alloys and profile wall thicknesses are used in your folding window systems? +
How does Vexis customize OEM/ODM orders to match architectural shop drawings? +
What air tightness and water penetration resistance metrics do your folding windows achieve? +
Can your aluminum windows meet North American (AAMA/NFRC) and Australian (AS2047) code compliance? +
What hardware brand options and multi-point locking security systems are available? +
How are fragile glass and aluminum frames packaged for international ocean freight container transport? +
What is the average lead time for custom OEM manufacturing and container delivery? +
Can I request a sample kit or inspect the factory in Foshan prior to contract signing? +
Ready to Source High-Performance Aluminum Folding Windows?
Connect directly with our senior fenestration export engineers in Foshan. Send us your project drawings, opening schedules, or tender requirements for a rapid technical review and quotation.
