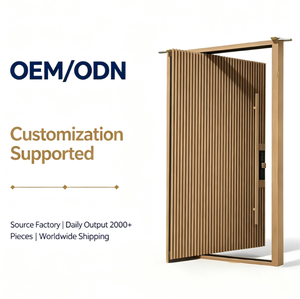

Modern Residential Aluminum Wood Composite Large Pivot Entry Door

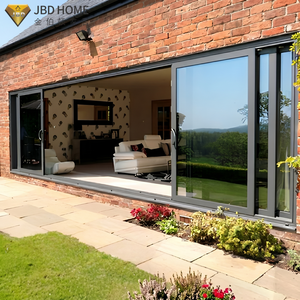

Modern Exterior 4-Panel Aluminum Sliding Glass Door Double Glazed
WANJIA Exterior Security Aluminum Modern Pivot Door Replacement
Custom Metal Thermal Insulated Aluminium Windows and Doors
Extremely Narrow Frame Aluminum Panoramic View Sliding Door

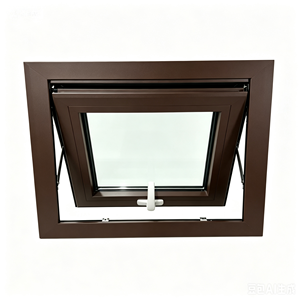

Dark Brown Aluminum Outward Opening Architectural Awning Window
Thermal Break Tilt & Turn Double Glazed Luxury Villa Window System
OEM Architectural Aluminium Roll Up Doors: Technical Engineering & Material Science
In modern industrial, commercial, and high-end residential architecture, the requirement for space efficiency, forced-entry resistance, and climate isolation has made custom extruded aluminium roll up doors a core specification element. Unlike conventional steel sectionals or single-skin rolling shutters, premium aluminium roll-up door systems engineered by Vexis Windows & Doors Co., Ltd. integrate structural grade 6063-T5/T6 alloy profiles with polyurethane insulated cores and high-cycle mechanical drive assemblies.
As a primary China manufacturer based in the hardware manufacturing capital of Foshan, Guangdong, Vexis designs roll-up closure systems that serve dual requirements: micro-space curtain storage within compact head-boxes and robust resistance to extreme environmental loads, including Category 5 typhoon pressure, coastal salt-fog corrosion, and severe thermal transference.
Structural Slat Profile & Alloy Metallurgy
Our OEM roll-up shutters are fabricated using high-precision extrusion dies producing double-walled interlocking slats ranging from 45mm to 100mm profile heights. Wall thickness spans 0.8mm to 1.5mm depending on clear-span requirements (up to 7.5 meters wide). The 6063-T5 aluminum alloy offers an optimal tensile strength exceeding 185 MPa, providing exceptional impact resistance while maintaining a low moment of inertia for smooth motor acceleration.
Thermal Insulation Core & Acoustic Dampening
To resolve the historical vulnerability of metal thermal bridges, Vexis injects CFC-free high-density polyurethane (PU) foam (40kg/m³-45kg/m³) inside the hollow chamber of double-skin slats. This composite structure achieves a thermal transmittance coefficient (U-value) as low as 1.8 W/m²K and provides sound insulation reduction of up to 28 dB, critical for subterranean garages, residential villas, and climate-controlled logistics hubs.
Standard vs. Heavy-Duty Aluminium Roll Up Door Configurations
Detailed technical parameters for architectural specification and procurement compliance. Custom OEM modifications are engineered according to site wind pressures and building codes.
| Performance Spec | Commercial Storefront Shutter | High-Wind Villa Garage Shutter | Heavy Industrial Roll Up Door |
|---|---|---|---|
| Profile Slat Height | 45mm / 55mm Curved Slat | 77mm Double-Skin Insulated | 100mm Extruded Reinforced Slat |
| Alloy / Temper | 6063-T5 Architectural Al | 6063-T6 High-Tensile Al | 6063-T6 / Structural Steel Guide |
| Slat Core Fill | Hollow / Micro-Perforated | PU Foam (42 kg/m³) | Flame-Retardant PU / Solid Metal |
| Wind Pressure Rating | Class 2 (Up to 700 Pa) | Class 4 (Up to 1400 Pa / Typhoon) | Class 5 (Up to 2200 Pa / Hurricane) |
| Thermal Value (U-Value) | 5.2 W/m²K | 2.1 - 1.8 W/m²K | 2.4 W/m²K |
| Surface Finish Options | Qualicoat Powder / Anodized | Woodgrain Transfer / Fluorocarbon | PVDF Coating / Custom RAL |
| Motor Automation | Tubular Motor with Limit Switch | Smart Somfy/Geze Tubular Drive | External Side-Drive Chain Motor |
| Safety Mechanisms | Manual Crank / Anti-Drop Brake | Infrared Safety Edge / Auto-Reverse | Light Curtain Safety & Manual Release |
Future Procurement & Market Trends in Aluminium Roll Up Shutters
Key shifts shaping global building envelope procurement for architectural importers, general contractors, and project developers over the next decade.
1. Green Building & Decarbonized Aluminium Sourcing
International building codes (such as LEED v4.1, BREEAM, and EU Energy Performance of Buildings Directive) now enforce strict embedded carbon limits. Procurement directors are transitioning away from high-carbon steel doors toward 100% recyclable aluminum alloys manufactured via low-carbon hydro-powered smelting processes. Vexis provides documented environmental product declarations (EPD) and compliant anodized coatings to meet global sustainability mandates.
2. Smart Building & IoT Motor Integration
The global market for motorized roller shutters is shifting rapidly toward integrated BMS (Building Management Systems) and IoT connectivity. Standard push-button controls are being replaced by Wi-Fi/Z-Wave smart controllers, RS485 protocol connectivity, and automatic rain/wind sensors. OEM customization now requires embedded electronic limits, smartphone app control compatibility, and battery backup solar-powered tubular drives.
3. Pre-Engineered Custom Modular Kits
To mitigate sky-rocketing jobsite labor costs in Europe, North America, and Australia, importers increasingly favor factory-assembled, "plug-and-play" roll-up door kits. Vexis offers pre-wired motor headboxes, pre-punched guide tracks, and color-coded installation hardware that reduces field assembly time by up to 60%, delivering significant net installed cost advantages for developers.
Structural Evolution & Product Development Trends
How mechanical engineering and surface treatments are advancing structural integrity, wind loading, and functional aesthetics in modern roll-up systems.
Anti-Hurricane Storm-Locking Guide Tracks
Standard roll-up curtains risk blown-out slats when subjected to high wind velocity suction pressure. Next-generation structural designs incorporate end-lock retained slats combined with heavy-duty extrusion side channels fitted with internal storm hooks. When high wind pressure flexes the curtain, the end locks mechanically engage the channel rim, preventing curtain dislodgement under pressures up to 2,400 Pa (equivalent to a Category 5 hurricane).
- Heavy aluminum wall tracks with dual EPDM weather-seal brushes.
- Polypropylene and zinc-alloy heavy end-locks riveted every alternating slat.
- Prevents wind rattle, air infiltration, and catastrophic pressure blow-outs.
Micro-Perforated Airflow & Light-Filtering Profiles
Modern urban design demands security without complete visual isolation or loss of ventilation. Advanced roll-up systems utilize CNC micro-perforated upper slats combined with solid lower slats. When the door is slightly raised, daylight and fresh air penetrate through hundreds of 2mm punched openings, creating a comfortable indoor microclimate for garages, storefronts, and commercial patios while keeping insects and unauthorized entry out.
- Optimal balance between structural anti-theft security and passive ventilation.
- Integrated night-vision illumination effects for luxury retail shopfronts.
- Custom punch geometries: Round, rectangular, or micro-mesh slots.
Factory-Direct Manufacturing Authority from Foshan
Located in Lishui Town, Foshan, Guangdong—the world’s premiere architectural aluminum production cluster—Vexis Windows & Doors Co., Ltd. operates a modern 30,000 square meter manufacturing base paired with a 1,500 square meter immersive technical exhibition hall.
With over two decades of export experience, our engineering department does not merely assemble components; we synthesize R&D, structural design, precision extrusion, powder-coating, and testing under one stringent ISO-certified quality management umbrella.
- 100% Pre-Assembly Inspection: Every roll-up shutter unit is fully assembled and cycle-tested for motor limits, curtain balance, and noise limits prior to export packing.
- International Code Compliance: Tested to meet AS/NZS, CE, ISO9001, and North American architectural standards for wind pressure, water tightness, and structural deflection.
- Reinforced Export Crating: Heavy-gauge wooden boxes with foam edge guards and anti-moisture vacuum wraps ensure zero transport damage across global sea-freight routes.
OEM/ODM Customization Capabilities
Custom Colors & Finishes: 200+ RAL colors, realistic outdoor-grade wood-grain transfers, matte anodized, and PVDF coatings.
Dimension Flexibility: Custom-made down to the millimeter to fit non-standard rough openings, arch headers, or zero-headroom clearances.
Hardware Integration: Choice of Somfy, Becker, Dooya, or industrial side-drives with custom voltage specs (110V-240V / 50-60Hz).
Frequently Asked Questions for Project Procurement
Clear, technical answers addressing the most common concerns of architects, general contractors, and door importers.
What makes aluminum roll-up doors superior to traditional steel sectional doors? +
Aluminum roll-up doors offer several distinct technical advantages over steel sectionals: First, aluminum (specifically 6063-T5/T6 alloy) is naturally corrosion-resistant and will not rust when exposed to coastal salt air or industrial humidity. Second, roll-up curtains roll tightly into a compact headbox directly above the lintel, freeing up 100% of ceiling space that steel sectional ceiling tracks occupy. Third, polyurethane-injected extruded aluminum slats provide equal or better thermal insulation while being significantly lighter, reducing motor strain and extending operational lifespan to over 50,000 cycles.
How do you calculate the maximum clear-span width for a roll-up shutter without sagging? +
Curtain deflection and wind-load resistance are governed by the profile moment of inertia (I-value) and wall thickness. For spans up to 3.0 meters, a 45mm or 55mm single or double-wall slat is sufficient. For spans between 3.0 and 5.5 meters, a 77mm double-skin insulated slat with 1.0mm aluminum walls is required. For extreme spans from 5.5 to 7.5 meters, we engineer a 100mm heavy extruded slat with internal horizontal stiffening ribs and storm-lock end pieces engaged in 120mm heavy guide tracks.
What power supply and motor automation options are available for overseas markets? +
We supply tubular and industrial side-drive motors compatible with all international power standards: 110V/60Hz for North America, 220V-240V/50Hz for Europe, Asia, Australia, and South America, as well as 3-phase 380V motors for rapid high-frequency industrial use. Automation options include wireless remote controls, wall switches, keypads, obstacle-sensing safety light curtains, auto-closing timers, and integration modules for smart-home or BMS automation systems.
Can your roll-up door systems withstand high wind pressures and hurricane zones? +
Yes. Our hurricane-rated roll-up shutter series is tested to withstand wind loads exceeding Class 4 and Class 5 (up to 2,400 Pascals, equivalent to 180 km/h wind speeds). This performance is achieved using heavy-wall structural aluminum extrusions, steel-riveted wind locks on slat ends, deep side-guide channels with mechanical retention lips, and heavy bottom bars with floor seals.
What details should I prepare to get an accurate project quotation? +
To receive an exact architectural estimate within 24 hours, please provide: 1) Structural opening dimensions (Daylight Width x Daylight Height); 2) Preferred slat type (Insulated thermal, single-skin extruded, or micro-perforated); 3) Color/finish specification (RAL color code or anodized finish); 4) Control preference (Manual spring-balanced, remote control tubular motor, or smart wall switch); 5) Project location and wind-load or fire-rating requirements.
Can I arrange a factory audit or visit the production base before placing bulk orders? +
Absolutely. Importers, general contractors, and engineering consultants are welcome to visit our 30,000 m² factory and 1,500 m² showroom in Lishui Town, Foshan, Guangdong, China. We also offer live video factory audits, material tensile testing demonstrations, and production status updates for active OEM projects.
