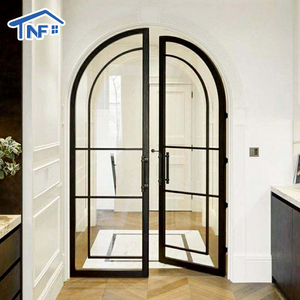

Custom Slim Aluminum Framed Swing Glass Crittall Style Arched Double Glazed Interior Casement Patio Entrance French Doors

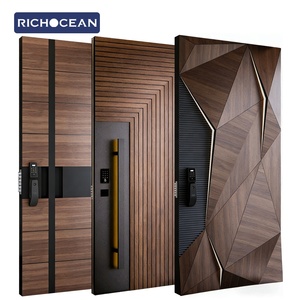

Richocean Luxury Bulletproof lamborghini Front Entry Door Aluminum Storm Security Voordeur Residential Doors
CSA Approved Thermal Break Aluminum windows Tilt and Turn Hurricane Window Double Glazed Aluminium Windows Casement Windows
USA Steel Metal Double Fire Rated Doors With Glass Steel Doors and Frames Commercial Hollow Metal Door Suppliers

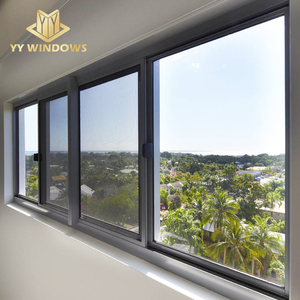

Double Glazed Aluminum Sliding Window Aluminium windows and Doors

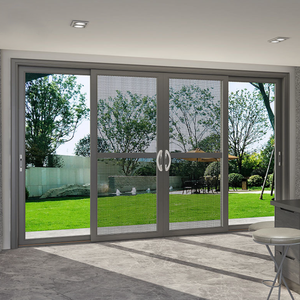

Modern Residential Aluminum Alloy Double-glazed Soundproof Stacked Windows Vertically Opening and Folding Custom Design
Lukliving Brown Color Aluminum Casement Windows Casement Windows for House

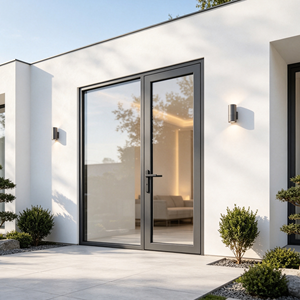

Weather Resistance Premium Powder-coating Finished Aluminum Glass Outward Opening Casement Doors with Australian Standard AS2047
Engineering Principles of Modern Architectural Aluminum Louvered Doors
An operational overview for procurement directors, facade consultants, commercial developers, and structural engineers.
In modern architectural engineering, the specification of architectural louver doors has evolved far beyond passive ventilation components. Today's commercial, industrial, and high-end residential projects demand high-performance dynamic louvers capable of balancing aerodynamic free area ratio (FAR), water penetration resistance, acoustic attenuation, and structural wind-load resistance under extreme pressure dynamics.
As China’s premier manufacturing hub for architectural fenestration, our Foshan-based facility integrates extrusion metallurgy, precision CNC machining, automated powder coating, and rigorous environmental lab testing. This comprehensive guide outlines the material engineering standards, technical procurement trends, and manufacturing capabilities defining the global aluminum louver door supply chain in 2026 and beyond.
Core Procurement Takeaway: When specifying aluminum louver doors for international projects, procurement teams must evaluate static pressure drop performance (Pa) alongside water penetration thresholds (under ASTM E547/E330) rather than focusing solely on physical blade geometry or raw weight per meter.
Why Global Importers Partner with Our Foshan Base
Direct-from-factory sourcing backed by vertical integration, international code compliance, and end-to-end quality assurance.
Vertical Extrusion Metallurgy
Utilizing high-grade 6063-T5 and structural 6060-T66 virgin aluminum billets. Our in-house extrusion dies ensure dimensional tolerances within ±0.15mm, critical for tight-fitting blade gaskets and storm-resistant interlocks.
Severe Weather & Storm Compliance
Engineered to meet Australian Standard AS2047, European CE, and North American NFRC benchmarks. Structural louver framing withstands wind load stresses up to 5000 Pa (equivalent to Category 5 hurricane pressures).
Surface Treatment Technology
Automated vertical powder coating lines executing AkzoNobel Interpon and PPG Fluorocarbon (PVDF Kynar 500) finishes. Guaranteed salt-spray resistance up to 3,000 hours for high-salinity coastal environments.
Complete Customization Engine
From aero-foil blades, Z-blade drainable profiles, and acoustic baffle louvers to integrated motorized actuators linked with automated Building Management Systems (BMS).
Global Export Logistics
Export-grade packaging featuring anti-scratch protective film, high-density EPE foam corner wrap, and steel-reinforced fumigated plywood crates ensuring 0% transit damage across long ocean freight routes.
Future Procurement Trends in Architectural Louvered Doors
Key shifts shaping global architectural specifications, energy codes, and sourcing strategies over the coming decade.
1. Net-Zero Architecture & Passive Thermal Ventilation
With global green building codes (such as LEED v4.1, BREEAM, and China's Green Building Evaluation Label) mandating dramatic operational energy reductions, architectural louver doors are transitioning from decorative elements to core passive HVAC components. Modern specifications prioritize louver doors with high Free Air Area (FAA) ratios (>55%) that enable natural night-purge cooling, reducing reliance on mechanical chillers in commercial developments.
2. Transition to Thermally Broken Louver Profiles
Historically, louver doors caused thermal bridging in cold climates or scorching desert environments. Future procurement trends indicate a steep rise in Thermal Break Aluminum Louver Profiles. Utilizing polyamide (PA66GF25) thermal strips, these advanced louver frames insulate the exterior metal from the interior, preventing indoor condensation while maintaining atmospheric air exchange when blades are adjusted.
3. Integration with Smart Building Automation (BMS)
Manual louver adjustments are rapidly being replaced by motorized, sensor-driven actuator systems. Today’s top-tier developers mandate louver doors equipped with linear actuators wired directly into smart home protocols (KNX, Zigbee) or commercial BMS. Automated louver doors respond dynamically to wind sensors, rain detectors, indoor CO2 levels, and solar angles to optimize indoor air quality (IAQ) and daylighting dynamically.
4. Demand for Sound-Attenuating (Acoustic) Louvers
As urban density increases, controlling ambient noise pollution while providing mechanical room ventilation (such as generator enclosures, transformer vaults, and rooftop HVAC plant rooms) is a paramount architectural challenge. Future procurement is heavily leaning toward Acoustic Baffle Louver Doors lined with high-density mineral wool insulation and perforated sound-absorbing metal linings, delivering sound transmission class (STC) ratings between 25 and 45 dB.
Technological Advancements in Louver Blade Engineering
Computational Fluid Dynamics (CFD) and material metallurgy are revolutionizing ventilation efficiency and water shedding performance.
| Louver Blade Type | Blade Geometry Profile | Airflow Free Area (FAA %) | Water Defense Capability | Primary Application Field |
|---|---|---|---|---|
| Standard Z-Blade | Single-Folder Rolled / Extruded Z-Shape | 45% - 50% | Basic Rain Protection | Substation Enclosures, Standard Storage Rooms |
| Drainable Aero-Blade | Dual-Chamber Aerodynamic Airfoil with Gutter | 55% - 62% | High (Self-Draining Catch Channels) | Commercial Facades, High-Rise Plant Rooms |
| Storm-Proof Wind-Driven Rain | Hooked Chevron / Vertical Double Baffle | 38% - 48% | Maximum (99.8% Wind-Driven Rain Resistance) | Coastal Wind Zones, Hurricane-Prone Regions |
| Acoustic Baffle Blade | Insulated Double-Skin Box Profile with Perforations | 30% - 42% | Moderate (Dual Water Baffles) | Generator Vaults, Data Center Cooling Rooms |
| Motorized Adjustable Louver | Pivot-Pintle Airfoil with EPDM Blade Seals | 0% (Closed) to 75% (Open) | Absolute Air/Water Seal when Closed | Smart Greenhouses, Industrial Passive Chilled Louvers |
CFD-Optimized Aerodynamic Airfoil Blades
By leveraging Computational Fluid Dynamics (CFD) simulation software, our engineering team designs blade profiles that minimize static resistance (pressure drop ΔP). Smooth, curved airfoil geometries allow higher volume flow rates (CFM) with significantly lower fan power requirements in forced-ventilation structures.
Technical Procurement & Sourcing FAQ
Direct answers to technical queries raised by architects, commercial buyers, and project contractors.
1. How is the Free Air Area (FAA) calculated for custom aluminum louver doors? ▼
Free Air Area (FAA) represents the total unobstructed open space through which air can pass, expressed as a percentage of the total door frame opening size. It is calculated by taking the net minimum clearance between adjacent louver blades multiplied by the length of the clear blade opening, divided by the gross frame area. Our technical team provides precise FAA calculations and pressure drop curves for every custom shop drawing.
2. What aluminum alloy grades are recommended for heavy-duty commercial louver doors? ▼
We primarily utilize 6063-T5 aluminum alloy for standard extruded louver blades due to its smooth surface finish and excellent anodizing/powder-coating characteristics. For structural frames, high-load spans, or hurricane-impact zones, we utilize 6060-T66 or 6005A-T6 alloy, which offers significantly higher tensile yield strength (up to 240 MPa) to withstand severe mechanical force and gust loading.
3. How do drainable louver doors prevent water penetration during heavy storms? ▼
Drainable louver doors feature integral gutter channels extruded directly into the leading edge of each blade. When wind-driven rain hits the louver blade, water is captured in the front channel and directed into vertical jamb downspouts rather than cascades down the face of the louver panel. This prevents rainwater from being pulled inside by the indoor suction airflow.
4. What surface finishes offer the longest life cycle in salt-air coastal regions? ▼
For extreme coastal or marine environments (within 1 km of ocean water), we recommend PVDF (Fluorocarbon) 3-Coat/3-Bake coating systems (such as Kynar 500) meeting AAMA 2605 specifications, or Qualicoat Class 2 / Class 3 Super Durable Powder Coatings. These treatments guarantee resistance to chalking, cracking, and salt-spray corrosion for 20+ years.
5. Can aluminum louver doors be supplied with bug screens and security grilles? ▼
Yes. All standard and custom louver door assemblies can be factory-fitted on the interior face with removable stainless steel insect mesh (304 or 316 grade), galvanized steel bird screen, or integrated heavy-duty aluminum security grilles for forced-entry protection without impeding airflow performance.
6. What testing documentation is available for custom factory production? ▼
Our products undergo comprehensive laboratory testing covering wind load resistance (ASTM E330), water penetration (ASTM E547), acoustic sound transmission (ISO 10140-2), and structural endurance. Factory inspection reports, material mill test certificates (MTC), and shop drawings are provided with every export shipment.
7. How are louver doors packaged to prevent damage during long-distance ocean shipping? ▼
Every louver door frame and sash is wrapped in 0.08mm anti-scratch protective film, fitted with EPE foam corner protectors, and bound in heavy-duty shrink film. Bulk orders are loaded into customized fumigated wooden crates reinforced with steel strapping to prevent shifting during transit.
8. What are the lead times and minimum order quantities (MOQ) for custom OEM projects? ▼
Standard lead time for custom aluminum extrusion, machining, coating, and assembly is 20 to 30 calendar days from shop drawing sign-off. We accommodate flexible order quantities, ranging from boutique architectural villa projects to large-scale commercial real estate developments requiring multi-container logistics.
Ready to Engineer Your Architectural Louver Project?
Send us your project CAD drawings, opening schedules, or performance targets. Our Senior Engineering Team will provide technical shop drawings, FAA analysis, and factory-direct wholesale quotations within 24 hours.
