Featured Architectural Systems & Insert Window Solutions
Factory-direct high-performance aluminum window profiles, thermal break subframes, motorized guillotine systems, and impact-resistant glazed fenestrations.
Motorized Vertical Sliding Guillotine Window Remote Controlled Patio Aluminum Glass Window For Balcony
Send an Inquiry
Beigeman Customized Modern Style Aluminium Casement Windows Hurricane Bullet Proof Aluminum Frame Thermal Break for House Use
Send an Inquiry
Florida Miami-Dade Approved NFRC North American Style Big Panel Tempered Glass Aluminium Modern Entry Front Pivot Doors
Send an Inquiry
ZEKIN American Style Aluminum Outward Opening Awning Window with Double Glass NFRC AS2047 Hurricane Impact Swing Window
Send an Inquiry
Powder Coated Tambour Door Roller Shutter Aluminium Typhoon Roller Shutter Door Electric Rolling up Door
Send an Inquiry

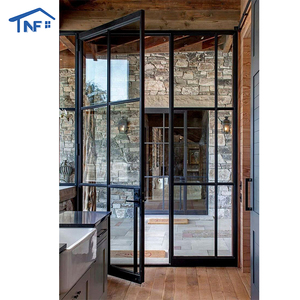

Aluminum Hinged Patio Doors European Standard Double Panels Swing Style Door Modern French Glass Casement Entry Doors
Send an Inquiry
Modern Janas Aluminum Alloy Glass House Sunroom Insulated Tempered Glass Panels Noise Reduction Easy Installation for Balcony
Send an Inquiry
Rustic Aluminum Alloy Workshop Folding Screen Heat Insulation Brown 5 Year Plastic Louver Sliding Windows
Send an Inquiry
20+
Years Industry Expertise
30,000 m²
Foshan Production Base
154+
Export Destination Markets
1,500 m²
Immersive Showroom
Comprehensive Engineering Analysis: Aluminium Insert Windows in Modern Fenestration
In modern architectural fenestration, Aluminium Insert Windows (frequently designated in structural engineering spec-sheets as subframe insert windows, retrofit window inserts, or curtain wall insert sashes) represent a pivotal technological bridge between structural efficiency and high-performance building envelopes. Designed to be fitted into existing primary timber, concrete, steel, or aluminum structural master-frames, insert window systems allow developers, general contractors, and facade consultants to overhaul a building’s thermal, structural, and acoustic envelope without demanding destructive, labor-intensive structural tear-outs.
As a leading China top aluminium insert windows manufacturer & supplier based in Foshan, Vexis Windows engineers proprietary aluminum extrusion profile systems tailored for demanding global climates. Our high-precision manufacturing processes incorporate architectural-grade 6063-T5 and 6063-T6 aluminum alloys, integrated with multi-chambered polyamide (PA66-GF25) thermal barrier strips. This structural design isolates the exterior metal profile from the interior living space, effectively neutralizing thermal bridging and reducing overall thermal transmittance (U-factor) down to passive house benchmark levels.
Core Structural Specifications & Material Composition Matrix
To assist facade engineers, architectural buyers, and commercial project managers in drafting precise procurement tender specifications, the standard material and performance metrics of Vexis structural aluminum insert window systems are detailed below:
| Performance Parameter |
Standard Specification / Technical Baseline |
High-Performance / Hurricane Option |
| Primary Aluminum Alloy |
6063-T5 Architectural Extrusion |
6063-T6 Structural High-Tensile Alloy |
| Profile Wall Thickness |
1.4mm to 2.0mm (Residential / Commercial Grade) |
2.2mm to 3.0mm (Heavy-Duty / High-Rise Structural) |
| Thermal Break Insulation |
PA66-GF25 Polyamide Strips (14.8mm - 24mm) |
Multi-Chamber Technoform PA66 + Aerogel Foam Filling |
| Glazing Unit (IGU) Specs |
5mm + 12A + 5mm Double Tempered Low-E |
6mm + 16Ar + 6mm + 1.52SGP Laminated Triple Insulated |
| Thermal Transmittance (U-Factor) |
1.6 - 2.2 W/m²·K (0.28 - 0.38 BTU/h·ft²·°F) |
≤ 0.8 - 1.2 W/m²·K (≤ 0.14 - 0.21 BTU/h·ft²·°F) |
| Acoustic Insulation Rating |
STC 32 dB to STC 38 dB |
STC 42 dB to STC 48 dB (OITC 36+) |
| Wind Pressure Resistance |
ASTM E330 Class P3 (2500 Pa) / AS2047 N4 |
Miami-Dade HVHZ Approved (TAS 201/202/203, ±5000 Pa) |
| Surface Coating Standards |
Qualicoat Powder Coating (60-80 microns) |
PVDF Fluorocarbon (AAMA 2605) / 25um Anodized Class I |
Whether installed as operable insert sashes into commercial unitized curtain walls, retrofit casements in multi-family residential upgrades, or high-load motorized vertical guillotine units for luxury patio enclosures, our insert windows maintain rigid structural integrity and watertight seals even under extreme environmental distress.
Future Procurement Trends in the Global Aluminium Insert Window Market
The global architectural fenestration sector is experiencing a monumental transformation driven by stringent global net-zero building regulations, fluctuating raw material costs, and an accelerated transition toward industrialized modular construction. Institutional real estate buyers, building material importers, and commercial developers are changing how they vet and procure aluminum insert windows from Chinese OEMs and direct manufacturers.
1. Prefabricated Subframe Insertion Protocols
Global contractors are shifting toward pre-engineered aluminum subframes. By fixing subframes during early masonry work and snapping thermal break insert sashes in later, projects cut on-site installation labor by up to 40% while shielding finished glass profiles from construction debris.
2. Decarbonization & EPD Transparency
Procurement departments across Europe, North America, and Australia now demand validated Environmental Product Declarations (EPD) and low-carbon primary aluminum (smelted via hydro energy). Suppliers incapable of verifying material traceability and carbon footprints risk exclusion from tier-1 municipal tenders.
3. Smart Automation & Motorized Integration
Demand for motorized vertical sliding guillotine insert windows and automated awning units is surging. High-end commercial venues and modern residential villas specify concealed linear actuators integrated into Tuya, Control4, or KNX smart home networks with auto-closing rain sensors.
4. Narrow Sightlines with Structural Silicone Glazing
Architectural design aesthetics favor maximal daylighting. The market is aggressively adopting ultra-slim frame profiles where structural silicone sealant bonding eliminates bulky aluminum glass stops, maximizing glass surface area without compromising shear loading capacity.
5. Extreme Weather Resistance (Hurricane & Bushfire)
With volatile global climate conditions, standard windows are rapidly being superseded by certified hurricane impact-resistant insert windows (Miami-Dade NOA, TAS 201/202/203) and BAL-40/BAL-FZ bushfire-rated fenestrations engineered with stainless steel mesh and ceramic fire-resistant glass.
Technological Innovations Driving Vexis Aluminum Insert Systems
As an industry leader in Foshan’s building materials industrial cluster, Vexis Windows continuously reinvests in extrusion tooling, automated assembly lines, and thermal performance research. Our technical team solves long-standing challenges in insertion window installations: water ingress at corner joints, thermal expansion stress, and sound leakage through hardware cutouts.
1. Corner-Cleat Crimping & Injection Sealing Tech
Traditional insert windows suffered from water leakage along mitered frame corners under heavy rainfall. Vexis utilizes heavy-duty mechanical corner cleat crimping combined with dual-component polyurethane corner injection glue. As the glue expands inside the internal chambers, it completely fills microscopic profile gaps, forming a structural bond capable of resisting extreme wind loads and water pressure up to 700 Pa.
2. Advanced Multi-Chambered EPDM Co-Extrusion Gaskets
We replace cheap PVC seals with automotive-grade EPDM (Ethylene Propylene Diene Monomer) continuous sealing gaskets. Utilizing continuous vulcanization co-extrusion technology, our frame perimeter seals retain full elasticity across operating temperatures from -40°C to +120°C, maintaining air infiltration ratings under 0.1 ft³/min·ft² in accordance with ASTM E283 test methods.
3. Low-E Solar Control Insulated Glass Units (IGU)
Glazing units constitute up to 85% of an insert window’s total surface area. Vexis integrates high-performance double and triple Low-E glass combinations filled with 95% high-purity Argon gas. By pairing off-line magnetron sputtering Double Silver or Triple Silver Low-E coatings with TPS (Thermo Plastic Spacer) warm-edge technology, our windows reflect long-wave infrared heat radiant energy while letting in natural daylight, reducing building HVAC energy consumption by up to 35% annually.
Why Global Importers & Developers Partner with Vexis Windows
Selecting the right OEM/ODM manufacturer in China is a critical decision for global building material distributors, real estate developers, and facade engineering firms. Vexis Windows combines deep technical expertise, robust production infrastructure, and stringent export quality control to guarantee flawless project delivery.
30,000 m² Advanced Manufacturing Base
Located in Lishui Town, Foshan, our factory houses automated CNC aluminum cutting centers, double-head precision miter saws, automatic corner crimpers, and semi-automated IGU glass processing lines, delivering stable monthly output capacity for large-scale development projects.
International Standards Compliance
Our window and door systems are fully certified to major international building codes, including North American NFRC energy ratings, Florida Miami-Dade HVHZ hurricane impact testing, Australian AS2047 standard, and European CE mark compliance.
100% Bespoke Engineering Support
Every order is manufactured strictly to architectural drawings. Our in-house technical engineering team reviews CAD/BIM shop drawings, calculates wind load structural requirements, and optimizes profile cross-sections to match local site installation practices.
Export-Safe Crating & Logistics
To withstand long sea freight transit, windows are individually wrapped in protective anti-scratch film, cushioned with dense foam corner protectors, and sealed into IPPC-certified fumigation-free wooden crates with built-in moisture desiccant packs.
Frequently Asked Questions (FAQ) for B2B Window Buyers
Technical, financial, and logistical insights for global procurement managers and structural engineers.
What is the structural difference between a standard replacement window and an Aluminium Insert Window?
A standard replacement window typically requires removing the entire existing window frame down to the rough wall opening studs, which disrupts exterior siding, trim, and interior drywall. An Aluminium Insert Window is custom-engineered to slide directly inside an existing frame or specialized aluminum subframe without disturbing surrounding exterior cladding or structural facade modules. This preserves structural integrity, speeds up installation, and lowers overall labor costs on renovation and high-rise retrofit projects.
What types of custom glass and profile finishes can Vexis supply?
Vexis offers complete bespoke customization. For aluminum frame profiles, options include Qualicoat powder coating (standard RAL colors), PVDF fluorocarbon spraying for harsh coastal zones (C4/C5 corrosion ratings), anodic oxidation (Class I 25um), and thermal-transfer 3D wood-grain finishes. For glass configurations, we supply double/triple tempered glass, Low-E heat-reflective coatings, soundproof acoustic PVB/SGP laminated glass, tinted glass, bullet-resistant glass units, and integrated motor-operated internal blinds.
How does Vexis ensure insert windows comply with regional building standards (e.g., USA, Australia, EU)?
Our engineering team tailors profile depth, wall thickness, thermal break strips, and glazing specifications to meet destination country building codes. Our products undergo rigorous third-party testing for air tightness (ASTM E283), water penetration (ASTM E331), structural wind load (ASTM E330), energy performance (NFRC ISO 10077), Australian standards (AS2047 / AS1288), and Miami-Dade County hurricane impact testing (TAS 201, 202, 203). Full laboratory test reports and certificates are provided for project submission.
What information should I provide to get an accurate commercial quote and CAD shop drawings?
To generate a quick, precise bid quote, please supply:
- Architectural window schedules, CAD elevation drawings, or rough opening dimensions;
- Required window opening mechanisms (casement, awning, tilt & turn, vertical sliding guillotine, bifold, sliding);
- Glazing specs (e.g., 6mm Clear + 12Ar + 6mm Low-E);
- Desired profile surface treatment and color code;
- Project location and specific wind load / thermal target parameters (U-factor, SHGC, STC rating).
What is your typical production lead time and Minimum Order Quantity (MOQ)?
Our standard production lead time is 25 to 35 business days after final approval of CAD shop drawings and receipt of deposit. For custom extrusion dies or specialized non-standard powder coat colors, initial tooling adds 7-10 days. We maintain flexible MOQ requirements: we support low-MOQ sample runs for boutique villa projects, as well as full 20GP/40HQ container shipments for large commercial developments.
Can I visit the Vexis manufacturing facility before issuing a purchase order?
Yes, we welcome global clients, real estate developers, contractors, and third-party inspection agencies (such as SGS, TÜV, or Bureau Veritas) to inspect our 30,000 m² factory production base and 1,500 m² immersive exhibition hall in Foshan, Guangdong, China. We also offer live HD video walkthroughs and virtual factory tours for overseas buyers unable to travel in person.
Ready to Engineer High-Performance Insert Windows for Your Next Project?
Connect directly with Vexis senior fenestration engineers for immediate CAD shop drawing reviews, system recommendations, structural load analysis, and factory-direct wholesale pricing.
