Factory-Direct Catalog
Precision-Engineered Architectural Window & Glass Door Systems
Explore our top-tier aluminum full glass door and window systems, engineered to pass stringent AAMA, NFRC, and AS2047 international standards for global residential and commercial projects.
Energy Efficient Aluminum Alloy Swing Casement Window Double Glazed Modern Villa Window System
Customized Casement Aluminium Alloy Glass Door Exterior Security Entrance Steel Main Doors
Aluminium Scaffold Trap Door Deck With Ladder for Construction Use
Top-quality Aluminum Double-hung windows With Thermal Insulation Thin Profile For New Construction

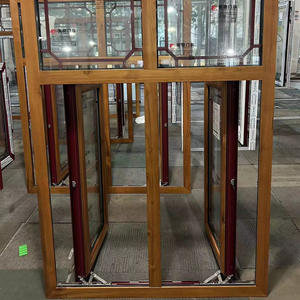

NFRC Certified Modern Design Aluminum Clad Wood Windows with Grill Tilt Turn & In-Swing Dual Action
Customized Size Modern Pivot Doors Aluminium External Glass Door Single Patio Door Glass Outdoor
Custom Double Glazed Soundproof Glass Windows Hurricane Impact Resistant Aluminium Sliding Window
Factory Expertise
Foshan Manufacturing Infrastructure & Global Export Authority
Operating from Foshan, Guangdong—the epicenter of China's aluminum extrusion industry—Vexis Windows & Doors Co., Ltd. combines advanced thermal break metallurgy with precision structural engineering.
20+
Years Industry Experience
154+
Countries Exported To
30,000m²
Production Base Capacity
1,500m²
Immersive Showroom
Pioneering Structural Integrity in Full Glass Door Manufacturing
In high-end architectural developments, the aluminum full glass door represents the intersection of structural physics, thermal science, and aesthetic minimalism. As premier China aluminum glass door manufacturers, our 30,000 m² factory in Lishui Town, Foshan utilizes ultra-precise CNC machining centers, automated corner-crimping equipment, and multi-chambered thermal barrier insertion lines. This ensures every door leaf exhibits absolute structural rigidity, effortlessly carrying high-tonnage double and triple-glazed Low-E insulated glass units (IGUs).
Architects and structural engineers specify full glass doors for their ability to eliminate visual barriers between interior living spaces and surrounding landscapes. However, achieving massive spans without structural deflection requires engineered architectural profile alloys. Vexis utilizes primary 6063-T6 aluminum extrusion billets, treated with multi-stage heat aging to guarantee a ultimate tensile strength exceeding 205 MPa and yield strength over 170 MPa.
Thermal Break Science
Integrated PA66 nylon thermal strips (24mm–34mm) break the thermal bridge, keeping U-values as low as 1.1 W/m²·K in harsh winters or scorching summers.
Severe Weather Resistance
Engineered for coastal typhoons and high wind-load conditions. Built-in hidden drainage channels prevent water back-siphonage up to 700 Pa pressure.
Ultra-Slim Sightlines
Narrow interlock frame designs (as slim as 16mm–21mm visible width) maximize light transmission without compromising structural shear capacity.
Technology & R&D
Product Development Trends in Full Glass Door Systems
The international architectural landscape is evolving rapidly. Discover the key technical innovations shaping the next generation of full glass doors.
1. Next-Generation Thermal Performance & Passive House Standards
Global building codes—such as Europe's EPBD directive, North America's IECC requirements, and Australia's NCC energy efficiency targets—have made thermal performance the single most critical compliance factor. Modern full glass doors must balance maximum daylighting with minimal solar heat gain (SHGC) and U-factor loss.
- Polyamide PA66-GF25 Reinforcement: We utilize 25% fiberglass-reinforced polyamide thermal insulation strips, which match the thermal expansion coefficient of aluminum extrusions, preventing joint shear stress over decades of extreme temperature swings.
- Triple-Glazed Gas Infill Technology: Full glass doors are increasingly configured with 6mm + 16Ar + 6mm + 16Ar + 6mm double-Low-E glass units, filled with 95%+ Argon gas to achieve acoustic attenuation ratings above STC 42 dB.
- Warm Edge Spacer Bars: Replacing traditional raw aluminum glass spacers with composite silicone/polypropylene warm-edge spacers reduces perimeter condensation risk dramatically.
2. Ultra-Slim Interlocks & Heavy-Duty Pivot Hardware
Commercial entrance spaces and luxury residential villas demand uninterrupted panoramic views. To meet this demand, factory engineering teams are moving away from traditional thick frame profiles toward concealed structural frames with sub-floor drainage boxes.
Our heavy-duty pivot doors utilize German-engineered multi-axis hydraulic floor pivots capable of supporting single sash weights up to 500 kg (1,100 lbs), allowing door heights up to 6 meters. Soft-close damping systems and perimeter EPDM sealing gaskets guarantee draft-free perimeter closing despite the massive sash leverage.
3. Hurricane Impact Resistance & Laminated Glass Innovations
For coastal developments in North America, the Caribbean, and Southeast Asia, full glass doors must withstand missile impact testing (ASTM E1886/E1996 and Florida Building Code TAS 201/202/203). Vexis integrates SentryGlas® (SGP) ionoplast interlayers within laminated tempered glass assemblies. SGP interlayers provide 5 times the tear strength and 10 times the stiffness of standard PVB interlayers, keeping the glass panel intact even if both glass panes shatter during hurricane force winds.
Engineered Performance Comparison Matrix
| Door System Category | Profile Wall Thickness | Thermal Transmittance (U-Value) | Wind Pressure Resistance | Water Tightness Rating | Acoustic Rating (STC) |
|---|---|---|---|---|---|
| Thermal Break Full Glass Casement Door | 2.0 mm - 2.5 mm | 1.2 - 1.6 W/m²·K | Class 8 (4500 Pa) | Class 6 (600 Pa) | 42 dB |
| Ultra-Slim Panoramic Sliding Door | 2.0 mm - 3.0 mm | 1.4 - 1.8 W/m²·K | Class 9 (5000 Pa) | Class 7 (700 Pa) | 38 dB |
| Heavy-Duty Exterior Glass Pivot Door | 2.5 mm - 3.0 mm | 1.6 - 2.0 W/m²·K | Class 7 (4000 Pa) | Class 5 (500 Pa) | 36 dB |
| Bifold Patio Full Glass Door | 2.0 mm | 1.5 - 1.9 W/m²·K | Class 6 (3500 Pa) | Class 5 (500 Pa) | 40 dB |
Strategic Procurement
Future Global Sourcing Trends for Aluminum Glass Doors
How international general contractors, real estate developers, and building material importers can optimize supply chain performance and risk mitigation when sourcing from China.
1. Shift Toward Decarbonized & Recycled Aluminum (Green Procurement)
With environmental certifications such as LEED v4, BREEAM, and the EU Carbon Border Adjustment Mechanism (CBAM) coming into full enforcement, major institutional developers require low-carbon extruded aluminum profiles. Chinese leading factories are transitioning from coal-fired primary aluminum smelting to hydro-powered primary aluminum and post-consumer recycled scrap processing.
Purchasing teams must request Environmental Product Declarations (EPDs) from their Chinese suppliers. Vexis offers certified low-carbon extruded profile options, reducing embodied carbon to below 4.0 kg CO2e per kg of extruded profile, enabling project developers to earn valuable LEED points for sustainable building envelopes.
2. Standardized Shop Drawing Validation & BIM Modeling Integration
The modern procurement workflow no longer relies on static PDF quotes. High-efficiency project procurement demands 3D Building Information Modeling (BIM) files (Autodesk Revit / IFC format) directly integrated into architectural blueprints prior to production release.
Our in-house engineering studio provides complete shop drawing submittals, anchor-point structural calculations, and 3D BIM models within 48 hours of architectural plan submission. This eliminates on-site installation misfits and slashes installation labor costs across global construction sites.
3. Modular Pre-Assembled Knock-Down (KD) Shipping Solutions
Global sea freight container rates and port handling logistics dictate package optimization. Modern B2B door buyers prefer structural frames designed for Modular Knock-Down (KD) shipping or fully unitized pre-assembled frames dependent on job site hoist capabilities.
- KD Packing Strategy: Saves up to 60% in ocean container volumetric space. Frame corners utilize precision Italian Monticelli alignment corner cleats for rapid site re-assembly.
- Custom Export Plywood Crating: Standardized fully enclosed fumigation-free wooden crates with built-in moisture absorbers prevent surface oxidation during 45-day sea transits.
Standardized Export Order Workflow
01
Drawings Review
Architectural layout, schedule, & structural specification analysis.
02
BIM & Shop Drawings
Engineered section details & anchorage CAD approval.
03
CNC Fabrication
Precision profile cutting, milling, & EPDM seal insertion.
04
QC Pressure Testing
Factory air, water, & structural load chamber testing.
05
Seaworthy Export
Foam wrapping, corner protection, & steel-strapped crate packing.
Factory Advantage
Why Specify Vexis Windows & Doors Co., Ltd.?
Over 20 years of continuous manufacturing refinement, serving commercial and residential projects across North America, Europe, Australia, and Asia-Pacific.
30,000 m² Advanced Production Base
Equipped with double-head precision cutting saws, multi-axis CNC machining centers, and automated corner crimping lines in Foshan, guaranteeing ±0.5mm dimensional tolerances.
Full Certification Compliance
Products tested and certified to AAMA/NFRC (USA), AS2047/AS1288 (Australia), and CE (European Union) standard testing protocols for complete peace of mind.
End-to-End Hardware Integration
Factory partnership with premier global hardware manufacturers, including Siegenia, Hoppe, Sobinco, and Monticelli, as well as proprietary heavy-duty multi-point security locksets.
Buyer Knowledge Base
Frequently Asked Questions for Project Procurement
Get direct technical answers regarding structural customization, glass specifications, factory audits, and international freight.
What alloy grade and thermal break specifications are standard for your full glass doors?
Our structural full glass doors utilize primary 6063-T6 architectural grade aluminum extrusions with profile wall thicknesses ranging from 2.0mm to 3.0mm depending on wind load requirements. We incorporate PA66-GF25 (25% Glass Fiber Reinforced Polyamide) thermal break strips (24mm to 34mm width) to separate exterior and interior profiles, delivering superior thermal isolation, structural shear strength, and anti-condensation protection.
How do Vexis full glass doors satisfy international building codes (AAMA, AS2047, CE)?
Every product line undergoes continuous physical laboratory testing. For North America, profiles and IGUs are built to meet AAMA 101 standards and NFRC thermal metrics. For the Australian market, door sashes are engineered and tested in accordance with AS2047 (Deflection, Air Infiltration, Water Penetration, Ultimate Strength) and AS1288 glass selection standards. Full test reports can be furnished upon request for project submittal packages.
Can I customize glass configurations, tinted coatings, and grille designs?
Yes, 100% of our orders are fabricated to custom project dimensions. You can select double or triple toughened safety glass, Low-E energy coatings (Single, Double, or Triple Low-E), Argon gas infill, acoustic laminated glass (PVB/SGP), reflective tints, or privacy frosted glass. Architectural grilles (Colonial, Craftsman, or custom geometric patterns) can be integrated between the glass panes or surface-mounted.
What surface finishes are available for harsh coastal or high-UV environments?
We offer AkzoNobel® Fluorocarbon PVDF coating (AAMA 2605 compliant) providing a 20+ year warranty against chalking, fading, and salt-spray corrosion—ideal for oceanfront villas. Additionally, we provide architectural powder coating (AAMA 2604 standard), anodized finishes (15–25 microns), and 3D heat-transfer wood-grain finishes.
What is the lead time for custom container orders, and how is quality controlled before shipping?
Standard production lead time is 25 to 35 calendar days following shop drawing approval and deposit receipt. Every unit undergoes strict 100% pre-assembly inspection in our Foshan facility, including diagonal squareness verification, hardware operation testing, EPDM gasket compression checks, and random water-hose pressure testing prior to export crate packing.
How can international buyers arrange factory audits or third-party inspections?
We welcome in-person visits to our 30,000 m² factory and 1,500 m² showroom in Lishui Town, Foshan, Guangdong. For overseas clients unable to travel, we facilitate live video walkthroughs and accommodate third-party inspection agencies (SGS, TUV, Bureau Veritas, Intertek) to conduct raw material, in-process, or final pre-shipment inspections.
Ready to Engineer Your Full Glass Door Project?
Submit your architectural drawings or opening schedules to our Foshan engineering desk. Receive factory-direct pricing, BIM CAD submittals, and performance evaluations within 24 hours.
