Engineering Whitepaper: Advanced Aluminium Tambour Door Metallurgy & Spatial Design Integration
In modern architectural engineering and high-density interior layout design, space utilization efficiency and dynamic barrier integrity have emerged as primary design parameters. Traditional hinged, sliding, or bi-fold door assemblies impose significant geometric spatial penalties due to swing radii and side pocket requirements. As a premier **China Best Aluminium Tambour Door Factory & Exporter**, Vexis Windows & Doors Co., Ltd. delivers high-performance extruded aluminum roller shutter systems engineered to eliminate spatial waste while maintaining superior structural, acoustic, and thermal performance.
Key Technical Insight: Why Aluminium Beats Traditional Wood & ABS Tambour Doors
Unlike conventional timber slats that warp under thermal-humidity fluctuations, or ABS plastics that suffer UV degradation and stress embrittlement, 6063-T5/T6 alloy extrusions deliver near-zero thermal expansion coefficient drift, UL94 V-0 flame spread resistance, and extreme resistance to mechanical wear over 100,000+ operational cycles.
1. Structural Metallurgy & Profile Geometry
Our aluminum tambour door assemblies utilize primary billet 6063 aluminum, subjected to precise hot-extrusion and artificial aging processes to achieve T5 or T6 temper hardness (Webster Hardness ≥ 12 HW). Slat geometries are algorithmically designed with interlock joints that distribute mechanical stress uniformly along the horizontal axis, preventing slat sag and binding within vertical or curved guide tracks.
- Single-Wall Architectural Slats: Ultra-slim profiles (15mm to 25mm slat height) designed for interior cabinetry, kitchen storage pods, medical equipment carts, and luxury RV interiors.
- Double-Wall Insulated Slats: Co-extruded hollow-chamber profiles filled with high-density polyurethane (PU) rigid foam (40 kg/m³ density). This engineered thermal break reduces U-values significantly, making them mandatory for hurricane-resistant garage doors and exterior architectural security shutters.
- Flexible Radius Track Spirals: Precision CNC-milled polymer and extruded aluminum guide spirals that enable rolling radii down to 45mm, permitting smooth retraction into ultra-compact ceiling or cabinet hoods.
Technical Performance Matrix: Aluminium Slat Configurations
| Profile Model Series | Slat Wall Type | Alloy Grade | Max Opening Width | Wind Load Resistance | Acoustic Rating (Rw) |
|---|---|---|---|---|---|
| AICC-TB-25 Mini | Single-Wall Ultra-Slim | 6063-T5 | 1.8 Meters | Class 2 (EN 12424) | 22 dB |
| AICC-TB-45 Arch | Double-Wall Solid | 6063-T6 | 3.5 Meters | Class 3 (EN 12424) | 28 dB |

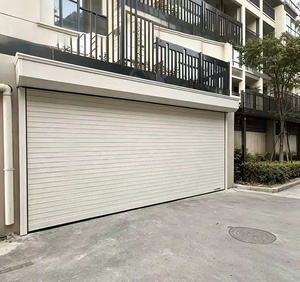

| AICC-TB-77 Garage | Double-Wall PU Insulated | 6063-T5 / T6 | 5.8 Meters | Class 4 Typhoon Rated | 34 dB |
| AICC-TB-RV Marine | Hybrid Alum / ABS Waterproof | Marine 6061-T6 | 2.2 Meters | Vibration / Shock Proof | 26 dB |
Global Procurement & Sourcing Trends (2025–2030)
As international commercial developers, marine outfitters, and residential contractors re-evaluate supply chain resilience and architectural efficiency, four core trends are shaping the future procurement landscape for aluminum tambour doors and roller shutters:
Trend 1: Smart IoT Automation & Silent Motor Integration
The global demand for motorized tambour doors is accelerating rapidly. Modern procurement specifications now mandate low-decibel (≤ 38 dB) brushless DC tubular motors seamlessly integrated with home automation protocols (Zigbee 3.0, Z-Wave, Matter, and RS485). Optical safety sensors, automatic obstacle reverse mechanisms, and smartphone app control are now baseline expectations for high-end residential and commercial projects.
Trend 2: Sustainable Metallurgy & EPD Certifications
With stringent global building codes like LEED v4.1, BREEAM, and the EU Green Deal, project specifiers demand Environmental Product Declarations (EPD). Chinese top-tier manufacturers are shifting toward low-carbon recycled aluminum billets powered by hydroelectric smelters, delivering fully recyclable tambour assemblies that reduce carbon footprints by up to 65% compared to virgin metal production.
Trend 3: Extreme Environment & Coastal Marine Ratings
From high-humidity tropical climates in Southeast Asia to coastal windstorms in North America, standard powder coatings fail rapidly. Sourcing trends prioritize C5-M high-durability fluoropolymer (PVDF) and architectural anodizing finishes (≥ 25 microns thickness). These surface treatments withstand over 3,000 hours of continuous neutral salt spray testing (ASTM B117) without pitting, blistering, or delamination.
Trend 4: Modular DIY Kits & Custom Precision Sizing
To reduce expensive on-site fabrication labor, developers and distribution importers are purchasing fully pre-engineered "Ready-to-Assemble" (RTA) tambour door kits. Complete with pre-cut track spirals, counter-balanced tension springs, integrated brush seals, and pre-drilled fixing points, RTA kits trim installation times on job sites by up to 70%.
Enterprise Manufacturing Competence & Global Advantage
30,000m² Production Base
Headquartered in Lishui Town, Foshan, Guangdong—the epicenter of global aluminum extrusion—our facility houses automated extrusion lines, precision CNC machining, and powder-coating lines.
Strict E-E-A-T Quality Control
Over 20+ years of export engineering experience across 154+ countries. Certified under ISO9001, ISO14001, CE, and international wind-load test protocols.
Full Bespoke Customization
Every project is built to exact CAD drawings. Choose custom RAL powder-coat colors, wood-grain heat-transfer finishes, slat profile geometries, and specialized locking hardware.
1,500m² Immersive Showroom
Inspect operational full-scale mockups in Foshan or request video technical audits with our chief metallurgical and mechanical engineering teams.
