Featured Engineering Portfolio
Precision Architectural Systems & Product Lineup
Explore our CE-compliant, factory-direct aluminum doors and windows engineered for international building codes, extreme wind loads, and high thermal efficiency.
Bullet Proof Glass Aluminum Sliding Window Price in Philippines Market
Get Catalog
Round Corner Aluminum Window Profile Safety Design for Kindergarten & School Construction
Get Catalog

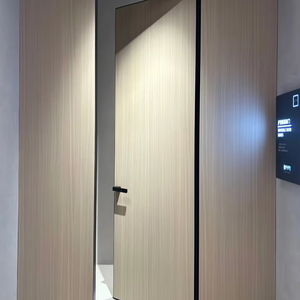

Melinco Modern Flush Mount Interior Door Fireproof Waterproof Honeycomb Aluminum Polymer
Get Catalog

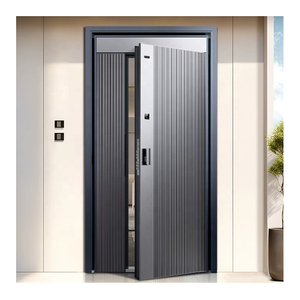

SJUMBO Modern Commercial Security Double-Layer Aluminium Swing Exterior Entrance Smart Door
Get Catalog
American NOA Standard Exterior Modern French Door Double Glazing Aluminium Hinged Door
Get Catalog
Modern Aluminum Alloy Broken Bridge Windows Tempered Glass Casement Windows For Home
Get Catalog
Premium Rustproof Aluminum Sliding Single Hung Windows Low E Glass for Villa Residential House
Get Catalog
Technical Engineering Standard
Architectural Dynamics of CE Certified Aluminium Hopper Windows
Aluminium hopper windows (bottom-hinged fenestration units that tilt inward at the top) represent one of the most mechanically sound ventilation solutions for modern commercial facade designs, basement enclosures, educational facilities, and sanitary environments. Unlike traditional side-hung casements, hopper windows utilize gravitational compression against multi-point perimeter EPDM seals to achieve superior acoustic decoupling and draft-free thermal envelope isolation.
Under the European Union Harmonized Standard EN 14351-1:2006+A2:2016, certified aluminium hopper assemblies manufactured by Vexis Windows undergo rigorous empirical testing for air permeability, watertightness, wind load resistance, and structural deflection under dynamic pressure gradients.
European CE Standard Performance Index
Empirical laboratory performance metrics for Vexis 68mm/75mm Thermal Break Aluminium Hopper Systems:
- Air Permeability: EN 12207 Class 4 (600 Pa)
- Watertightness: EN 12208 Class E1050 (1050 Pa)
- Resistance to Wind Load: EN 12210 Class C5/B5 (2000 Pa)
- Thermal Transmittance (Uw): 1.1 to 1.4 W/m²K (Triple Glazed)
- Acoustic Rating (Rw): Up to 44 dB Sound Reduction
Data Visualization Matrix
Commercial Specification & System Comparison
Compare structural extrusion profiles, glazing units, and thermal barrier configurations across primary architectural application classes.
| System Category | Alloy Profile Grade | Thermal Break Strip | Glazing Configuration | Hardware & Friction Stays | Target Application |
|---|---|---|---|---|---|
| Heavy-Duty Commercial Hopper | Architectural 6063-T6 (2.0mm wall) | PA66-GF25 Polyamide 24mm strip | 6mm Low-E + 12Ar + 6mm Toughened | German Siegenia / Hoppe Concealed Hinges | High-Rise Towers, Curtains Walls |
| Acoustic Institutional Hopper | 6063-T5 High Precision (1.8mm) | PA66 Thermal Insulation (20mm) | 8.76mm Laminated + 12Ar + 6mm Clear | Multi-point Cam Locks with Limit Stay | Schools, Hospitals, Libraries |
| Basement & Utility Micro Hopper | Standard Aluminium Alloy (1.4mm) | Optional Non-Thermal / Thermal Break | 5mm + 9A + 5mm Insulated Glass | Heavy-Duty Bottom Hinges & Snib Latch | Sub-grade Basements, Garages |
| Ultra-Slim Passive Residence | High-Tensile 6061-T6 Extrusion | PA66-GF25 Iso-Strut 34mm Strip | 4mm Low-E + 14Ar + 4mm + 14Ar + 4mm | Concealed Electric Actuator Motorized | Luxury Residential, Passive Houses |
Market Intelligence & Procurement Strategy
Future Sourcing Trends for Aluminium Fenestration Systems
As carbon emission standards tighten across the EU, North America, and Australia, global procurement managers and structural engineering firms are shifting away from legacy unreinforced PVC and non-certified aluminium units. The next decade of fenestration sourcing hinges on five vital criteria:
1. Embodied Carbon & Circular Sourcing
Global developers demand prime primary aluminum billings paired with recycled scrap content (minimum 30% recycled billet) to earn LEED and BREEAM sustainability points. Vexis utilizes low-carbon hydro-powered extruded aluminium billets to dramatically reduce life-cycle environmental impact.
2. Building Automation & Smart Actuation
Modern hopper windows are no longer strictly manual. Procurement trend data indicates a 40% year-over-year surge in requests for 24V DC automated linear actuators integrated into Building Management Systems (BMS) for automated night-flush cooling and smoke evacuation.
3. Hurricane & Typhoon Resilience
Coastal and tropical regions (such as Florida, Philippines, and Northern Australia) enforce strict impact-resistant mandates. Advanced aluminium hopper windows now integrate multi-layer SGP laminated impact glass and heavy-duty structural glazing tapes to resist Florida TAS 201/202/203 testing standards.
Factory Innovation
Manufacturing Innovations in Aluminium Profile Engineering
The manufacturing process for high-performance hopper windows has evolved dramatically beyond simple miter cutting and mechanical corner crimping. At Vexis Windows, our 30,000 m² Foshan plant incorporates German-engineered double-head CNC cutting saws, automatic corner sealant injection systems, and precise profile punching stations.
Our proprietary Dual-Component Injection Corner Cleat Technology guarantees absolute structural rigidity at 45-degree miter joints, completely eliminating frame corner leakage—the primary point of failure in traditional window assemblies.
Key Engineering Milestones
Iso-Strut Polyamide Thermal Barriers
Reinforced PA66-GF25 (25% glass fiber) thermal break strips lock internal and external aluminum extrusions together while eliminating thermal bridging.
Co-Extruded EPDM Weatherstripping
Continuous perimeter gasket lines using automotive-grade EPDM rubber preserve elastic recovery across temperature extremes from -40°C to +80°C.
Concealed Stainless Steel Friction Hinges
Heavy-duty SUS304 friction stays allow controlled opening angles up to 45 degrees, equipped with anti-drop safety restrictors.
Why Partner With Vexis
Factory Direct Competitive Advantages for B2B Importers
As a premier OEM/ODM manufacturer headquartered in Lishui Town, Foshan, Guangdong, Vexis Windows eliminates middleman markups while providing full engineering design support for commercial builders and distributors worldwide.
01
30,000 m² Production Scale
Our expansive manufacturing center features automated extruding, powder coating, double-glazing, and unitized assembly lines yielding an annual output capacity exceeding 350,000 m² of windows and doors.
02
Full CE & International Compliance
Every shipment is backed by factory test certificates conforming to EN 14351-1 (Europe), AS2047 (Australia), and NFRC/AAMA (North America) to ensure seamless customs clearance and building sign-offs.
03
Custom Shop Drawings & BIM Models
Our dedicated R&D engineering department provides CAD shop drawings, 3D BIM Revit models, and structural calculation reports tailored to your specific architectural project blueprints within 48 hours.
04
1,500 m² Immersive Showroom
Overseas buyers, general contractors, and developers are invited to inspect full-scale mockup samples, profile cross-sections, hardware options, and motorized automation systems at our Foshan exhibition hall.
05
Architectural Surface Finishes
Choose from AkzoNobel fluorocarbon (PVDF) coatings, PPG powder coating (RAL color spectrum), anodized oxide finishes, or heat-transfer wood grain patterns resistant to high UV exposure and coastal salt spray.
06
Ocean Export Heavy Packing
All finished assemblies are encased in protective blue scratch-resistant film, padded with corner protectors, vacuum shrink-wrapped, and loaded into steel-reinforced wooden crates for safe ocean freight transit.
Procurement Knowledge Base
Frequently Asked Questions by Commercial Buyers
Key technical and commercial answers regarding minimum orders, testing compliance, customization, and export logistics.
What specific documentation does your CE certification cover for European orders?
Our CE Certification is executed under the Construction Products Regulation (CPR 305/2011) and Harmonized Standard EN 14351-1. We supply the official Declaration of Performance (DoP), factory production control (FPC) audit documentation, and initial type testing (ITT) laboratory reports covering air permeability, water tightness, structural wind resistance, thermal U-values, and dangerous substance safety.
Can Vexis supply motorized smart hopper windows for high-reach installations?
Yes. For clerestory openings, elevated curtain wall applications, or stairwells beyond reach, we integrate chain-driven electric actuators (24V DC / 230V AC) manufactured by premier partners (such as Geze, Mingardi, or local CE-marked motor lines). These can be operated via wall switches, remote controls, or interfaced directly into central Building Automation Systems (BMS) for automatic rain sensor closure.
What are the minimum order quantities (MOQ) and standard lead times for custom projects?
For standard profile finishes (such as Traffic White, Matt Black, or Anodized Silver), our MOQ starts at 50 square meters. For custom RAL powder coat colors or specialized profile dies, the minimum is 200 m². Standard manufacturing lead time is 20 to 28 business days following CAD shop drawing approval and deposit receipt.
How does the thermal break hopper system prevent interior moisture condensation?
Interior surface condensation occurs when warm indoor air strikes a cold aluminium surface. Vexis thermal break hopper windows insert high-density Polyamide PA66-GF25 structural insulation bars between the interior and exterior aluminum chambers. Combined with double or triple insulated glass units containing warm-edge argon gas spacers, the internal surface temperature remains above the dew point even in sub-zero exterior conditions.
Do you offer bespoke size customization and structural calculations for wind loads?
Every window system manufactured by Vexis is engineered to exact project dimensions provided by architects or builders. Our engineering team utilizes finite element analysis (FEA) software to perform structural wind deflection calculations based on your geographic wind pressure zone, building elevation height, and mullion spans, ensuring structural safety compliance.
What packaging measures prevent damage to glass and aluminum frames during shipping?
We utilize a multi-tier protective packaging system: 1) Non-residue protective film over all aluminum surfaces; 2) Molded corner guards on all 4 frame edges; 3) EPE foam sheeting between packed sashes; 4) Fully enclosed fumigated plywood crates or rigid steel-framed pallets with forklift access bases to survive transshipment and ocean container transport.
Ready to Engineer Your Next Project With Vexis?
Partner directly with Foshan's leading export manufacturer of CE-certified aluminium hopper windows, sliding doors, and architectural fenestration systems. Request comprehensive product catalogs, sample kits, or factory-direct pricing today.
